Product Details
Place of Origin: China
Brand Name: ENNENG
Certification: CE
Model Number: PMG
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD 1000-5000/set
Packaging Details: seaworthy packing
Delivery Time: 15-120 days
Payment Terms: L/C, T/T
Supply Ability: 20000 sets/year
Name: |
Permanent Magnet Generator Alternator |
Current Type: |
AC |
Power Range: |
5-2000kw |
Protection Grade: |
IP54 IP55 IP68 |
Bearing Brand: |
SKF |
Cooling Method: |
Natural Cooled |
Insulation Class: |
H |
Phase: |
3 Phase |
Voltage: |
400v |
Material: |
Rare Earth NdFeB |
Name: |
Permanent Magnet Generator Alternator |
Current Type: |
AC |
Power Range: |
5-2000kw |
Protection Grade: |
IP54 IP55 IP68 |
Bearing Brand: |
SKF |
Cooling Method: |
Natural Cooled |
Insulation Class: |
H |
Phase: |
3 Phase |
Voltage: |
400v |
Material: |
Rare Earth NdFeB |

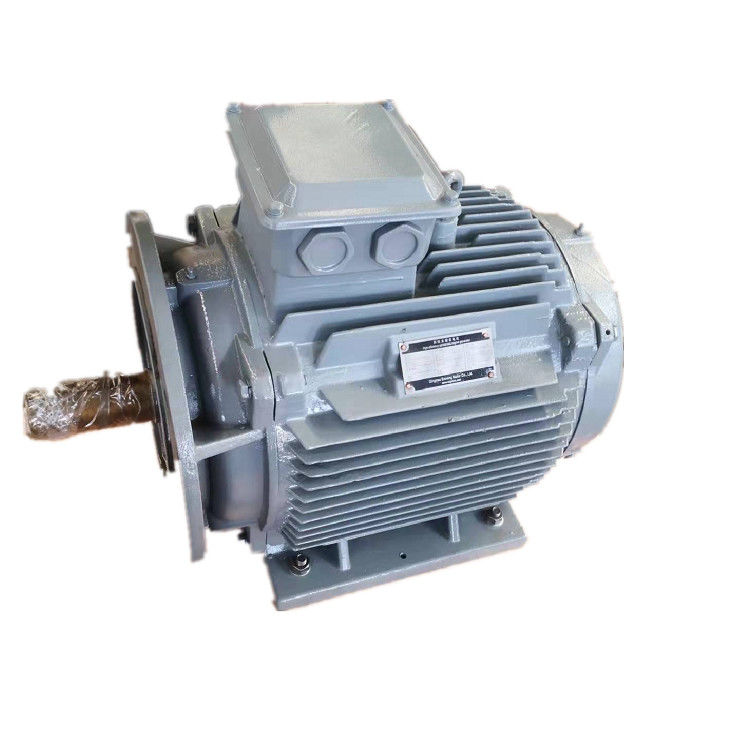

1000kw 200rpm 400V 50Hz Permanent Magnet Generator Alternator
Product Drawing
Technical Parameter
| No. | Parameter | Units | Data |
| 1 | Rated output power | KW | 1000 |
| 2 | Rated speed | RPM | 200 |
| 3 | Rated output voltage | VAC | 400 |
| 4 | Rated current | A | 1500 |
| 5 | Rated frequency | Hz | 50 |
| 6 | Poles | 30 | |
| 7 | Efficiency at rated speed | % | ＞95.6 |
| 8 | Winding type | Y | |
| 9 | Insulation resistance | MΩ | 18 |
| 10 | Insulation | class | H |
| 11 | Rated torque | Nm | 48000 |
| 12 | Start torque | Nm | ＜550 |
| 13 | Temperature rise | °C | 90 |
| 14 | Max working temperature | °C | 130 |
| 15 | Generator diameter | mm | See the drawing |
| 16 | Shaft diameter | mm | See the drawing |
| 17 | Housing material | Casting Iron | |
| 18 | Shaft material | Steel | |
| 19 | Bearing | SKF | |
| 20 | Weight | Kg | 5200 |
Detailed Pictures
The permanent magnet generator is a device that converts mechanical energy to electrical energy. In this device, the rotor windings have been replaced with permanent magnets. Permanent magnet generators are used mostly in industrial applications like turbines and engines to produce commercial electrical energy, the permanent magnet alternator is an alternate source of energy and has multiple benefits which make it a great device for a variety of residential, commercial, and industrial applications.
The structure
The permanent magnet generator is mainly composed of a rotor, end cover, and stator. The structure of the stator is very similar to that of an ordinary alternator. The biggest difference between the structure of the rotor and the alternator is that there are high-quality According to the position of the permanent magnet on the rotor, the permanent magnet generator is usually divided into a surface rotor structure and a built-in rotor structure.
Working Principle
The permanent magnet generator uses the principle of electromagnetic induction in that the wire cuts the magnetic field line to induce an electric potential and converts the mechanical energy of the prime mover into electrical energy output. It consists of two parts, the stator, and the rotor. The stator is the armature that generates the electricity and the rotor is the magnetic pole. The stator is composed of an armature iron core, uniformly discharged three-phase winding, machine base, and end cover.
The rotor is usually a hidden pole type, which is composed of excitation winding, iron core and shaft, guard ring, center ring, and so on.
The excitation winding of the rotor is fed with DC current to generate a magnetic field close to the sinusoidal distribution (called the rotor magnetic field), and its effective excitation flux intersects with the stationary armature winding. When the rotor rotates, the rotor's magnetic field rotates together with it. Every time a revolution is made, the magnetic lines of force cut each phase winding of the stator in sequence, and a three-phase AC potential is induced in the three-phase stator winding.
When the pm generator is running with a symmetrical load, the three-phase armature current synthesizes to generate a rotating magnetic field with synchronous speed. The stator and rotor fields interact to generate braking torque. The mechanical torque input from the turbine overcomes the braking torque and works.
Features
① The generator has many poles, which improve the frequency and efficiency, saving the cost of rectifiers and inverters.
② Finite Element Analysis is used when designing the generator, compact structure. Low startup torque, solves the problem of small wind startup, improving wind energy utilization.
③ Leave out the gear increaser, improve the reliability and efficiency of the generator, and lower the amount of maintenance.
④ H class insulation, vacuum pressure impregnation.
⑤ Have many structures such as vertical axis, horizontal axis, internal rotor, external rotor, and plate type.
⑥ Strong rotors, the generator could achieve high speed.
⑦ Small size, lightweight, high energy density, suitable for special situations.
⑧ Run efficiency throughout the whole speed range, high efficiency.
⑨ Use imported high-speed oil-contained bearings, maintenance free, and high reliability.
The following points should be paid attention to when designing wind turbines:
(1) The operating environment of the generator is harsh, and the generator is required to have high safety and reliability and be able to prevent rain, snow, and dust.
(2) When the generator is directly driven by the wind wheel (the commonly used speed-increasing gearbox is omitted), the rated speed of the generator is required to be low.
(3) The generator's initial pressure build speed is required to be low to maximize the utilization factor of wind energy.
(4) The starting resistance torque of the generator is as small as possible, so that the generator can start well at a lower wind speed, and the utilization of wind energy is also improved.
By matching the power and speed of the generator to that of the wind turbine, the power system becomes more efficient. No gearboxes are needed, and the efficiency of the alternator exceeds 90%.
2. Variable speed generators provide a solution for Hydro Industry.
Increased efficiency from variable speed technology could make many more small hydro sites economically feasible to develop.
