IE4 Efficiency 3 Phase Power Permanent Magnet Synchronous Motor With Rare Earth NdFeB For Industrial

Product Details

Place of Origin: China

Brand Name: ENNENG

Certification: CE,UL

Model Number: PMM

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 500-5000/set

Packaging Details: seaworthy packing

Delivery Time: 15-120 days

Payment Terms: L/C,T/T

Supply Ability: 20000 sets/year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    3 phase permanent magnet synchronous motor, IE4 permanent magnet synchronous motor pmsm, Industrial permanent magnet synchronous motor pmsm


Name:	Industry Use Permanent Magnet Synchronous Electric Motor Manufacturer	Current:	AC
Material:	Rare Earth NdFeB	Installation:	IMB3 IMB5 IMB35
Phase:	3 Phase	Poles:	2,4,6,8,10
Power Range:	5.5-3000kw	Voltage:	380v, 660v, 1140v, 3300v, 6kv, 10kv
Frame Size:	From H112 To H450	Control Mode:	Invertor Open Loop Vector Control

Name:	Industry Use Permanent Magnet Synchronous Electric Motor Manufacturer
Current:	AC
Material:	Rare Earth NdFeB
Installation:	IMB3 IMB5 IMB35
Phase:	3 Phase
Poles:	2,4,6,8,10
Power Range:	5.5-3000kw
Voltage:	380v, 660v, 1140v, 3300v, 6kv, 10kv
Frame Size:	From H112 To H450
Control Mode:	Invertor Open Loop Vector Control

IE4 Efficiency 3 Phase Power Permanent Magnet Synchronous Motor With Rare Earth NdFeB For Industrial

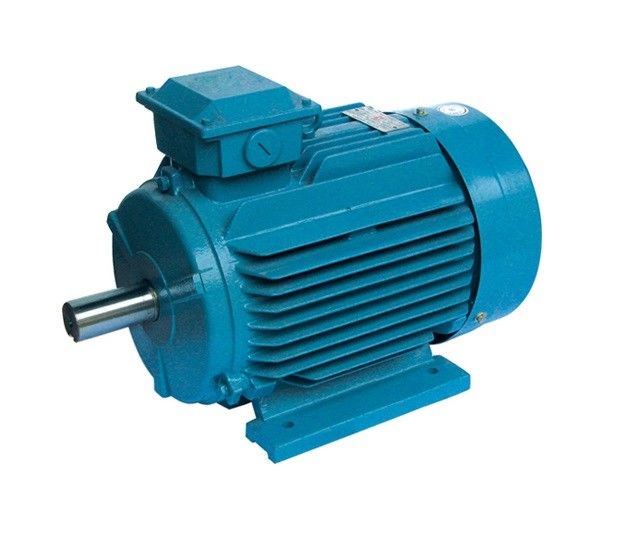

Industry Use Permanent Magnet Synchronous Electric Motor

The TYC series ultra-high-efficiency rare earth permanent magnet synchronous motor that exceeds the IE4 efficiency standard is the latest special motor for compressors developed by our company. It adopts high-performance rare earth permanent magnet materials and frequency conversion technology, operates without encoder vector control, and has a magnetic steel structure with advantages of high efficiency, reliable operation, and good installation interchangeability.

Product Parameters

Model	Rated Power (KW)	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor	Rated Frequency (Hz)	Service Factor
TYC7.5-3000-Z132S6	7.5	380	12.8	3000	93.0	0.96	150	1.2
TYC11-3000-Z132S6	11	380	18.5	3000	94.0	0.96	150	1.2
TYC15-3000-Z132S6	15	380	25.2	3000	94.3	0.96	150	1.2
TYC18.5-3000-Z160M6	18.5	380	31.0	3000	94.4	0.96	150	1.2
TYC22-3000-Z160M6	22	380	36.8	3000	94.6	0.96	150	1.2
TYC30-3000-Z160L6	30	380	50.0	3000	95.0	0.96	150	1.2
TYC37-3000-Z160L6	37	380	61.3	3000	95.5	0.96	150	1.2
TYC45-3000-Z180M8	45	380	74.5	3000	95.6	0.96	200	1.2
TYC55-3000-Z180M8	55	380	90.9	3000	95.8	0.96	200	1.2
TYC75-3000-Z225M8	75	380	123	3000	96.2	0.96	200	1.2
TYC90-3000-Z225M8	90	380	148	3000	96.5	0.96	200	1.2
TYC110-3000-Z225L8	110	380	180	3000	96.8	0.96	200	1.2
TYC132-3000-Z225L8	132	380	215	3000	97.0	0.96	200	1.2
TYC160-3000-Z225L8	160	380	261	3000	97.0	0.96	200	1.2
TYC185-3000-Z250M8	185	380	301	3000	97.0	0.96	200	1.2
TYC-200-3000-Z250M8	200	380	326	3000	97.0	0.96	200	1.2
TYC-200-3000-Z250L8	220	380	359	3000	97.0	0.96	200	1.2
TYC-200-3000-Z250L8	250	380	408	3000	97.0	0.96	200	1.2

Architectural Features

Frame Size	132	160	180	200	225	250M/L	280M/L
Mechanical Properties
Frame/End shield/Terminal boxes Material	Cast Iron
Mounting	B3/B35
IP Grade	IP23
Cooling Method	IC01(ODP)
Earth	Inside the wiring cover and the machine base
Bearing Dust cover/clearance	ZZ/C3	/C3	/C3	/C3	/C3	/C3	/C3
Bearing fix	DE fix, NDE with Wave spring washer
DE fix bearings 3000rpm	6308	6309	6312	6312	6313	6314/6318	6314/6318
DE fix bearings 1500rpm	6308	6309	6312	6312	6313	6318/6318	6318/6318
NDE fix bearings 3000rpm	6308	6309	6312	6312	6313	6314/6316	6314/6316
NDE fix bearings 1500rpm	6308	6309	6312	6312	6313	6316/6316	6316/6316
Lubrication Material	ESSO UNIREX N2
Oil pipe	/	End shield oiling device pipe plug
Shaft Material	Steel45#
B type vibration limit (mm/s)	1.6	2.2
Balance	1/2 key G2.5 grade
Nameplate Material	Aluminum alloy
Electrical Performance
Voltage	380/400V(or440/460V) three terminals
Winding Material	High purity copper
Dipping method	VPI and drying
Insulation grade	155(F)
Service Factor	1.0/1.2/1.3
Stator and rotor lamination	Silicon steel
Permanent magnet	NdFeB

Detailed Pictures

Installation Outline Drawing

Operating Principle

A permanent magnet motor is a device that utilizes permanent magnets to generate a magnetic field for motor rotation. It consists of a stator and a rotor. A coil on the stator is energized with electric current to produce a rotating magnetic field. The permanent magnets on the rotor, in turn, are attracted to the rotating magnetic field and follow it. By constantly changing the direction of the current in the stator coil, a continuous rotary motion can be produced in the rotor. Permanent magnet motors are characterized by high efficiency, high power density, and fast response.

Key Features

Simple and reliable structure: no encoder vector control, can realize unlimited start and stop
High protection level: IP55 protection level avoids the disadvantages of low protection level motor permanent magnets absorbing iron dust and blocking the air gap
Strong anti-demagnetization ability: It adopts an intercalated magnetic steel structure and designs a higher maximum demagnetization working point
Good installation interchangeability: the shape and installation dimensions of the motor are consistent with those of ordinary asynchronous motors, and the design of the host does not need to be modified, which is suitable for both new machines and old machines for energy-saving renovation
Ultra-high efficiency operation: ultra-high efficiency, the efficiency is higher than the standard value of IE4 efficiency (the stray loss is recommended according to the 112B method)
