30kW Water Cooled Permanent Magnet Generator 150rpm with 400V Three Phase Output

Name: 30kW Water Cooled Permanent Magnet Generator 150rpm with 400V Three Phase Output
Brand: QINGDAO ENNENG MOTOR CO.,LTD.
SKU: EPMG-30LW
Price: 3.00 USD
Availability: InStock

Brand Name:	ENNENG
Model Number:	EPMG-30LW
MOQ:	1 Set
Price:	USD 1,000-5,000 / Set
Payment Terms:	L/C,T/T,Western Union,PayPal
Supply Ability:	20000 Sets per Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO 9001:2015

Rated Voltage:

400V AC

Rated Speed:

150rpm

Protection Grade:

IP54

Magnet Material:

NdFeB Neodymium

Cooling Method:

Water Cooled Liquid Jacket

Number Of Poles:

Phase:

Three Phase

Frequency:

50Hz / 60Hz

Rated Power:

30kW

Insulation Class:

Class H

Packaging Details:

Seaworthy plywood wooden case with foam shock-proof lining

Highlight:

Water Cooled Permanent Magnetic Motor Generator

30kW PMG CE ISO9001 Certified

Three Phase 150rpm Hydro Generator

Product Description

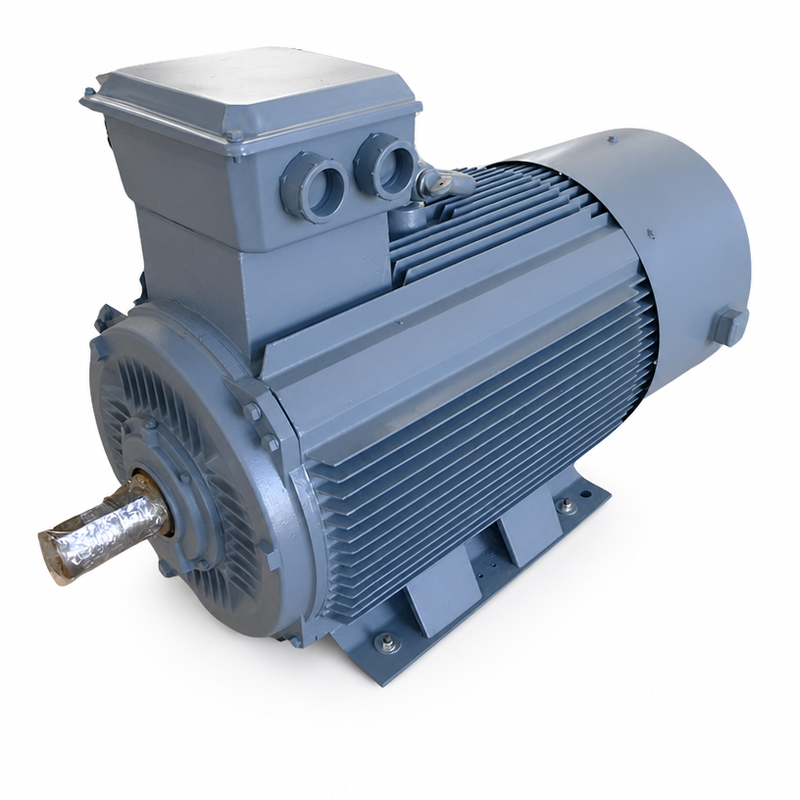

EPMG-30LW 30kW Water Cooled Permanent Magnetic Motor Generator 150rpm 400V

This 30kW water cooled permanent magnetic motor generator is engineered for continuous-duty generation where heat is the hidden enemy of uptime. Built as a permanent magnet motor generator with an integrated liquid cooling jacket, it maintains stable winding temperature even at full rated load, which directly extends insulation and magnet life.

EPMG-30LW 30kW Water Cooled Permanent Magnetic Motor Generator Structure

Key Features

Liquid-cooled jacket maintains low temperature rise for 24/7 continuous operation
NdFeB permanent magnetic rotor - no excitation system, no carbon brushes, no field loss
Three phase 400V output at only 150rpm - perfect match for low head hydro turbines
CE and ISO9001 certified production line with full load test report before shipping
Factory 3-year warranty with spare parts support and technical documentation

Technical Specifications

Rated Power	30kW
Rated Voltage	400V AC
Phase	Three Phase
Frequency	50Hz / 60Hz
Rated Speed	150rpm
Number of Poles	40
Magnet Material	NdFeB Neodymium
Cooling Method	Water Cooled Liquid Jacket
Protection Grade	IP54
Insulation Class	Class H
Warranty	3 Years

Applications

Small hydro stations
Irrigation power systems
Container energy storage
Industrial standby generation where water cooling is available

EPMG-30LW 30kW Permanent Magnet Motor Generator Application in Small Hydro Power Station

Quality & Warranty

Every unit is tested under rated load and shipped with a 3-year warranty. Spare magnet rotors and seal kits are stocked for fast after-sales response.

ENNENG is an experienced permanent magnet motor and permanent magnetic motor generator manufacturer. Contact our sales team for quotation, OEM customization and technical support.
