Grid Tie Off Grid 50kW Permanent Magnet Motor Generator EPMG-50HY 300rpm 400V

Name: Grid Tie Off Grid 50kW Permanent Magnet Motor Generator EPMG-50HY 300rpm 400V
Brand: QINGDAO ENNENG MOTOR CO.,LTD.
SKU: EPMG-50HY
Price: 3.00 USD
Availability: InStock

Brand Name:	ENNENG
Model Number:	EPMG-50HY
MOQ:	1 Set
Price:	USD 1,000-5,000 / Set
Payment Terms:	L/C,T/T,Western Union,PayPal
Supply Ability:	20000 Sets per Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO 9001:2015

Rated Power:

50kW

Rated Voltage:

400V AC

Phase:

Three Phase

Frequency:

50Hz / 60Hz

Rated Speed:

300rpm

Number Of Poles:

Operation Mode:

Grid Tie & Off Grid

Controller Interface:

Inverter Ready

Protection Grade:

IP55

Cooling Method:

Natural Cooled

Application:

Wind & Hydro Turbine

Warranty:

3 Years

Packaging Details:

Seaworthy plywood wooden case with foam shock-proof lining

Highlight:

50kW Grid Tie Off Grid PMG

IP55 Dual Mode PMG Generator

Dual Mode Renewable Energy Generator

Product Description

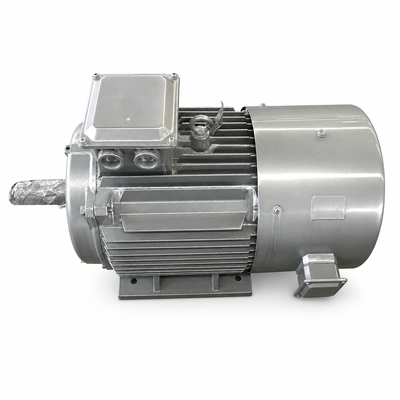

Grid Tie Off Grid 50kW Permanent Magnet Motor Generator EPMG-50HY 300rpm 400V

One project may start off-grid and later connect to the utility - this 50kW grid tie off grid dual mode permanent magnet motor generator handles both. As a permanent magnetic motor generator with inverter-ready terminals and IP55 protection, it adapts to grid-connected wind farms or standalone hydro villages.

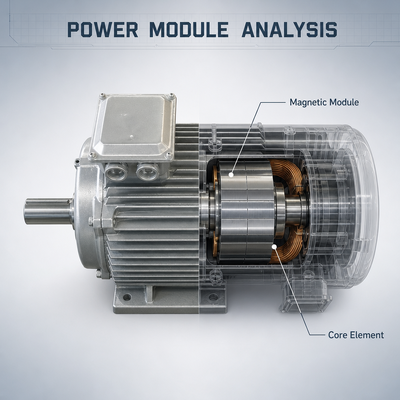

EPMG-50HY 50kW Grid Tie Off Grid Permanent Magnet Motor Generator Structure

Key Features

Dual mode operation: grid tie with standard inverter or off-grid with charge controller
IP55 enclosure withstands rain, dust and coastal humidity
Wide speed range output simplifies maximum power point tracking
Inverter ready terminal box with pre-wired temperature sensors
Natural cooled frame with no auxiliary power consumption

Technical Specifications

Rated Power	50kW
Rated Voltage	400V AC
Phase	Three Phase
Frequency	50Hz / 60Hz
Rated Speed	300rpm
Number of Poles	20
Operation Mode	Grid Tie & Off Grid
Controller Interface	Inverter Ready
Protection Grade	IP55
Cooling Method	Natural Cooled
Application	Wind & Hydro Turbine
Warranty	3 Years

Applications

Wind-hydro hybrid projects, farm microgrids, island electrification and commercial rooftop renewable systems.

EPMG-50HY 50kW Grid Tie Off Grid Permanent Magnet Motor Generator Application

Quality & Warranty

3-year warranty with matched inverter recommendation list. System design support available from our engineers.

ENNENG is an experienced permanent magnet motor and permanent magnetic motor generator manufacturer. Contact our sales team for quotation, OEM customization and technical support.
