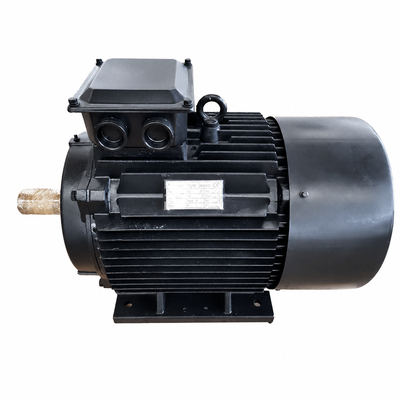

10kW Marine Grade IP67 Permanent Magnet Generator for Offshore and Marine Applications

Name: 10kW Marine Grade IP67 Permanent Magnet Generator for Offshore and Marine Applications
Brand: QINGDAO ENNENG MOTOR CO.,LTD.
SKU: PMG-10MR
Price: 1.00 USD
Availability: InStock

Brand Name:	ECER
Model Number:	PMG-10MR
MOQ:	1 Set
Price:	USD 1,800-2,600 / Set
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Fujian, China

Certification:

CE, ISO 9001:2015

Protection Class:

IP67

Insulation Class:

Class H (180C)

Rated Voltage:

220V AC

Rated Speed:

300rpm

Phase:

3 Phase

Corrosion Protection:

Salt Spray 500 Hours

Efficiency:

92%

Number Of Poles:

Rated Power:

10kW

Housing Material:

Marine Grade Epoxy Coated

Frequency:

50Hz

Stator Windings:

Anti-moisture Varnish Treatment

Packaging Details:

Export plywood case with shock-proof foam and waterproof wrapping, suitable for sea freight

Highlight:

Marine Grade IP67 PMG Generator

Corrosion Resistant Offshore Generator

10kW Salt Spray Protected PMG

Product Description

10kW Marine Grade IP67 Corrosion Resistant Permanent Magnet Generator PMG

10kW Marine Grade IP67 Permanent Magnet Generator

This 10kW marine grade permanent magnet generator is designed for offshore wind turbines, ship auxiliary power and coastal solar-wind hybrid stations. The IP67 sealed housing and 500 hour salt spray tested coating resist humidity, salt fog and rain, ensuring reliable operation in harsh marine environments.

All fasteners are stainless steel and the stator windings receive three times of anti-moisture varnish treatment. As a waterproof permanent magnetic generator, it can withstand temporary immersion during installation and heavy sea spray during operation.

Key Features

IP67 waterproof housing for marine and offshore duty
500 hour salt spray test passed with marine grade coating
Stainless steel fasteners and anti-moisture windings
20 pole rotor generating at 300rpm low speed

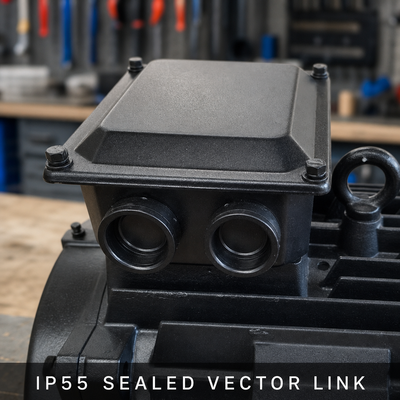

Sealed cable gland and waterproof connector options
Maintenance free operation in harsh coastal climate

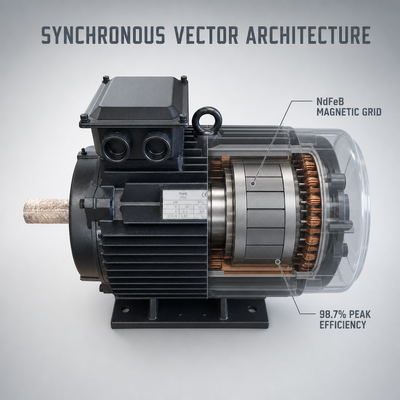

Structure Diagram

PMG-10MR Permanent Magnet Generator Structure Diagram

Technical Specifications

Rated Power	10kW
Rated Speed	300rpm
Rated Voltage	220V AC
Frequency	50Hz
Phase	3 Phase
Number of Poles	20
Efficiency	92%
Protection Class	IP67
Corrosion Protection	Salt Spray 500 Hours
Housing Material	Marine Grade Epoxy Coated
Insulation Class	Class H (180C)
Application	Marine / Offshore

Application Scene

PMG-10MR Permanent Magnet Generator Application Scene

Typical Applications

Offshore wind turbines, shipboard auxiliary generators, coastal hybrid power systems, desalination plant power recovery.

Cable length and connector type can be customized for marine projects. Contact us for the salt spray test report.
