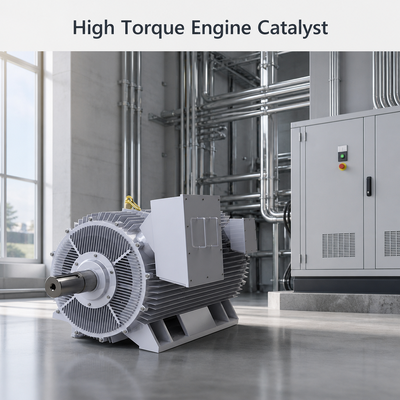

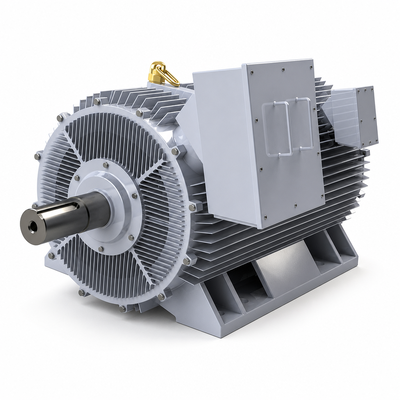

75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems

Name: 75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems
Brand: QINGDAO ENNENG MOTOR CO.,LTD.
SKU: PMG-75HY
Price: 9.00 USD
Availability: InStock

Brand Name:	ECER
Model Number:	PMG-75HY
MOQ:	1 Set
Price:	USD 7,500-11,000 / Set
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Fujian, China

Certification:

CE, ISO 9001:2015

Rated Speed:

300rpm

Phase:

3 Phase

Insulation Class:

Class H (180C)

Efficiency:

96%

Working Mode:

Grid Tie / Off Grid

Cooling Method:

Air Cooled

Rated Voltage:

400V AC

Number Of Poles:

Rated Power:

75kW

Protection Class:

IP54

Frequency:

50Hz

Rotor Speed:

300rpm

Packaging Details:

Export plywood case with shock-proof foam and waterproof wrapping, suitable for sea freight

Highlight:

Grid Tie Off Grid Hybrid PMG

75kW Hybrid Renewable Generator

400V Dual Mode Permanent Magnet Generator

Product Description

75kW Grid Tie Off Grid Permanent Magnet Generator 400V Hybrid Renewable PMG

75kW Grid Tie Off Grid Permanent Magnet Generator

This 75kW permanent magnet generator supports both grid tie and off grid operation, giving system integrators maximum flexibility for hybrid renewable projects. In grid tie mode it feeds 400V 50Hz power through a compatible inverter; in off grid mode it charges battery banks with stable rectified output.

As a dual mode permanent magnetic generator, it is the core power unit of wind-solar hybrid systems, diesel replacement plants and island microgrids. The 20 pole rotor produces rated power at 300rpm with 96% efficiency.

Key Features

Dual working mode for grid tie and off grid systems
Compatible with mainstream wind and hybrid inverters
20 pole low speed rotor at 300rpm
96% efficiency across the operating range
Stable output for battery charging applications
Air cooled structure, low maintenance requirement

Structure Diagram

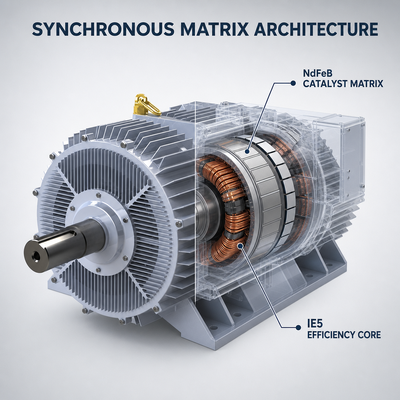

PMG-75HY Permanent Magnet Generator Structure Diagram

Technical Specifications

Rated Power	75kW
Rated Speed	300rpm
Rated Voltage	400V AC
Frequency	50Hz
Phase	3 Phase
Number of Poles	20
Efficiency	96%
Working Mode	Grid Tie / Off Grid
Insulation Class	Class H (180C)
Protection Class	IP54
Cooling Method	Air Cooled
Application	Hybrid Wind Solar

Application Scene

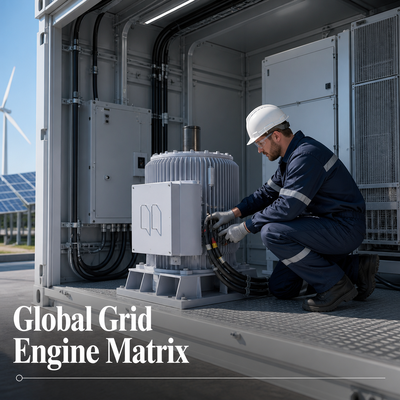

PMG-75HY Permanent Magnet Generator Application Scene

Typical Applications

Wind solar hybrid power plants
Island microgrids
Diesel replacement systems
Commercial off grid energy projects

We supply matched rectifier and inverter recommendations for your chosen working mode. Contact us for the system design.
