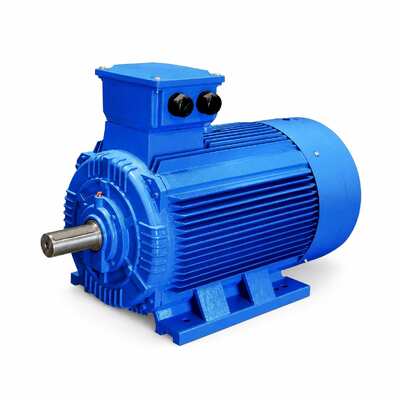

200kW High Efficiency Natural Cooled Permanent Magnet Generator with 97% Efficiency and Class H Insulation

Name: 200kW High Efficiency Natural Cooled Permanent Magnet Generator with 97% Efficiency and Class H Insulation
Brand: QINGDAO ENNENG MOTOR CO.,LTD.
SKU: PMG-200EF
Price: 20.00 USD
Availability: InStock

Brand Name:	ECER
Model Number:	PMG-200EF
MOQ:	1 Set
Price:	USD 16,000-24,000 / Set
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Fujian, China

Certification:

CE, ISO 9001:2015

Insulation Class:

Class H (180C)

Magnet Type:

NdFeB Neodymium

Rated Voltage:

400V AC

Rated Speed:

300rpm

Phase:

3 Phase

Protection Class:

IP55

Efficiency:

97%

Number Of Poles:

Frequency:

50Hz

Rated Power:

200kW

Cooling Method:

Natural Cooled

Rated Temperature:

180C

Packaging Details:

Export plywood case with shock-proof foam and waterproof wrapping, suitable for sea freight

Highlight:

High Efficiency Natural Cooled PMG

200kW Class H Generator

400V 50Hz Eco Friendly PMG

Product Description

200kW High Efficiency Class H Permanent Magnet Generator Natural Cooled 400V

200kW High Efficiency Natural Cooled Permanent Magnet Generator

This 200kW natural cooled permanent magnet generator achieves 97% efficiency thanks to optimized electromagnetic design and low loss NdFeB magnets. The finned frame dissipates heat without any fan or water pump, eliminating auxiliary power consumption and reducing maintenance work.

Class H insulation allows the generator to sustain higher temperature rise, while the IP55 enclosure protects it from dust and rain in outdoor renewable plants. As an eco friendly permanent magnetic generator, it contains no excitation copper loss and operates quietly during power generation.

Key Features

97% efficiency with optimized electromagnetic design
Natural cooled finned frame, no fan or water pump needed
Class H insulation for high temperature endurance
IP55 protection for outdoor installation
No excitation loss, no carbon brushes, maintenance free
Quiet and eco friendly operation for green energy plants

Structure Diagram

PMG-200EF Permanent Magnet Generator Structure Diagram

Technical Specifications

Rated Power	200kW
Rated Speed	300rpm
Rated Voltage	400V AC
Frequency	50Hz
Phase	3 Phase
Number of Poles	20
Efficiency	97%
Insulation Class	Class H (180°C)
Protection Class	IP55
Cooling Method	Natural Cooled
Magnet Type	NdFeB Neodymium
Application	Renewable Power

Application Scene

PMG-200EF Permanent Magnet Generator Application Scene

Typical Applications

Wind power plants, hydro stations, green hydrogen projects, industrial energy saving retrofits.

Full load test report and efficiency curve are provided with every generator. Contact us for delivery schedule.
