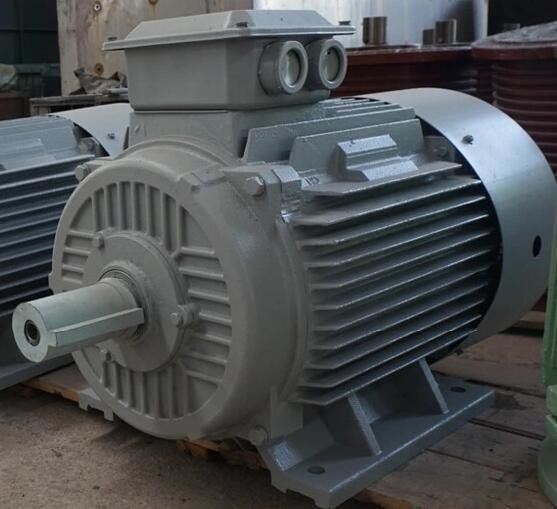

Three Phase Permanent Magnet AC Alternator Natural Cooled For Wind Turbine

Three Phase Permanent Magnet AC Alternator China Manufacturer

Detailed Pictures

What is the permanent magnet generator?

Our permanent magnet alternator is an eco-friendly electro-mechanical device because of exceedingly less mechanical power consumption and maximized power output. Permanent magnet alternators are way more compact as compared to synchronous generators and allow simplified mechanical integration thanks to the fact that they are directly driven by the rotor and therefore, more efficient than the ac asynchronous generator. The permanent magnet alternator has excessively less weight and length. Our permanent magnet alternator is designed with ultra-superior technology to increase efficiency with a complete power output system. The permanent magnet alternator is by principle a multiphase AC synchronous machine and more particularly a 3-phase machine delivering a balanced system of AC voltages and currents, in which both stator and rotor magnetic fields are rotating synchronously at the same speed without any slip.

The structure

The permanent magnet generator is mainly composed of a rotor, end cover, and stator. The structure of the stator is very similar to that of an ordinary alternator. The biggest difference between the structure of the rotor and the alternator is that there are high-quality According to the position of the permanent magnet on the rotor, the permanent magnet generator is usually divided into a surface rotor structure and a built-in rotor structure.

Working Principle

The main components of permanent magnet generators are stators and rotors.

The rotor is made from permanent magnets, and it can generate magnetic fields. Magnetic parts are set around the stators as well, so fluxes could compass them.

The stator is composed of rotating coils. Once receiving the magnetic power, the stator generates electricity consequently.
In this way, the movement of the rotors is transformed into electric energy. The more stator coils we have, the more electric currents we get.

The permanent magnet alternator’s speed is selected depending on the application so that there is no speed variation.

With a PMG system, there are several benefits to the more traditional AC systems:
· Smaller compact system
· Higher efficiency
· Speeds other than synchronous can be fixed to optimize engine power, fuel consumption, and voltage output
· High power density reducing weight (both alternator and for the engine)
· Increased reliability of the system by removing traditional excitation windings.

What are the advantages of permanent magnet generators in wind turbine applications:
· Direct drive (No speed multiplier, no gearbox needed)
· Virtually no maintenance
· Highest power-to-weight ratio in direct drive
· High efficiency
· Simplification of mechanical design
· Easy mechanical interface
· Cost optimization

Applications of permanent magnet generators:

Low-speed, direct-drive PMGs operate without any gearbox and fast-rotating parts, resulting in increased reliability and superior drive train efficiency. The typical speed range is between 10rpm and 20rpm.

The generator can be designed with a segmented stator construction. This provides redundancy and makes it possible to repair the generator in the nacelle without full disassembly. Optionally, our generator design can use the generator bearing as a turbine main bearing to integrate the turbine brake system into the generator construction. Benefits are simplicity, fewer components, and therefore, higher reliability.

With the rising cost of electricity, an increasing number of populations are looking for an alternate source of energy and permanent magnet generators fit this gap perfectly. These generators can also reduce the strain on the environment as they do not use any non-renewable sources of energy to produce electricity.

These devices do not consume any environmental resources to produce energy and thus are environmentally friendly. Besides, no wastage or by-products are generated from these devices in the process of energy generation. Environmental experts recommend the use of permanent magnet generators as these can reduce the impact of pollution by up to 50% percent.
