185KW IE5 Ultra Premium Permanent Magnet Motor with IC71W Water Jacket for Rubber Mixers

Name: 185KW IE5 Ultra Premium Permanent Magnet Motor with IC71W Water Jacket for Rubber Mixers
Brand: QINGDAO ENNENG MOTOR CO.,LTD.
SKU: ECER-WC-185
Price: 14,000.00 USD
Availability: InStock

Brand Name:	ECER
Model Number:	ECER-WC-185
MOQ:	1 Piece
Price:	USD 9500-18500 / Piece
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO 9001

Cooling Method:

IC71W Water Jacket

Magnet Type:

NdFeB Rare Earth

Frequency:

50Hz

Rated Voltage:

380V

Rated Speed:

1500RPM

Insulation Class:

Class H

Protection Class:

IP55

Noise Level:

<=78dB(A)

Pole Number:

4 Poles

Efficiency Class:

IE5 Ultra Premium

Rated Power:

185KW

Mounting Type:

B3 Foot Mounted

Packaging Details:

Export plywood case with foam protection

Highlight:

Water Cooling Jacket IC71W

IE5 Continuous Duty Efficiency

Rubber Mixer Drive Motor

Product Description

185KW Water Cooled IE5 Permanent Magnetic Motor IC71W Jacket for Rubber Mixer

Product Overview

The ECER-WC-185 is a 185KW water cooled IE5 Permanent Magnetic Motor built for rubber mixers and other continuous heavy duty machines. Its IC71W integrated water jacket removes heat directly from the stator housing, so this Permanent Magnet Motor holds a stable winding temperature even under sustained full load, which extends insulation life and prevents torque derating in hot workshops.

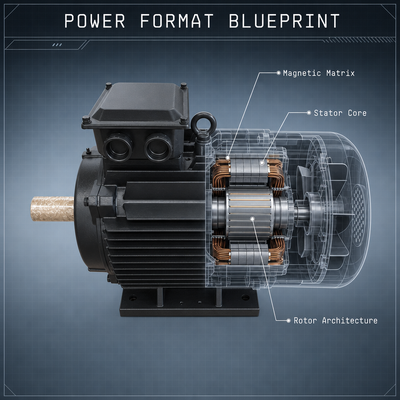

Fig.1 185KW Permanent Magnet Motor Structure Diagram

Key Features

IC71W water cooling jacket keeps winding temperature stable at full load
IE5 efficiency class lowers energy cost for continuous 24/7 duty
Permanent Magnetic Motor rotor eliminates slip loss of induction machines
High torque output with smooth low speed operation for mixing cycles

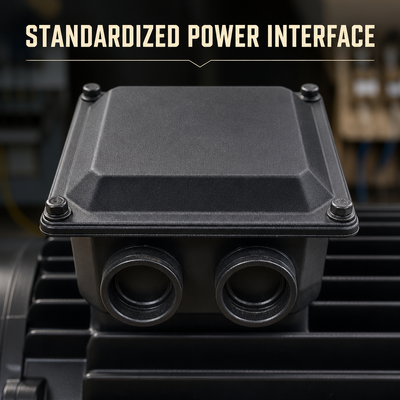

Sealed terminal box and corrosion protected frame for industrial environments

Technical Specifications

Rated Power	185KW
Rated Voltage	380V
Frequency	50Hz
Efficiency Class	IE5 Ultra Premium
Rated Speed	1500RPM
Pole Number	4 Poles
Protection Class	IP55
Cooling Method	IC71W Water Jacket
Insulation Class	Class H
Mounting Type	B3 Foot Mounted
Magnet Type	NdFeB Rare Earth
Noise Level	<=78dB(A)

Applications

Designed for rubber mixers, internal mixers, extruders, calendering lines and other continuous process machines that demand a high power water cooled Permanent Magnetic Motor with reliable full load torque.

Fig.2 185KW Permanent Magnetic Motor Industrial Application

Quality Assurance

Each unit undergoes full load temperature rise test, vibration test and noise test before delivery, backed by ISO9001 quality management and a standard 18-month warranty.

Model ECER-WC-185 is available for worldwide export. Ask our team for the datasheet, dimension drawing and export price list.
