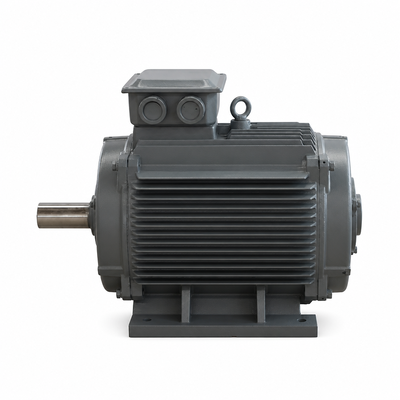

25KW IE5 Ultra Premium Efficiency Permanent Magnet Motor with B5 Flange Mount for OEM Customization

Name: 25KW IE5 Ultra Premium Efficiency Permanent Magnet Motor with B5 Flange Mount for OEM Customization
Brand: QINGDAO ENNENG MOTOR CO.,LTD.
SKU: ECER-OM-25
Price: 2,700.00 USD
Availability: InStock

Brand Name:	ECER
Model Number:	ECER-OM-25
MOQ:	1 Piece
Price:	USD 1800-3600 / Piece
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO 9001

Efficiency Class:

IE5 Ultra Premium

Rated Voltage:

380V (Custom 220V-690V)

Rated Speed:

1500RPM

Insulation Class:

Class H

Protection Class:

IP55

Noise Level:

<=73dB(A)

Pole Number:

4 Poles

Cooling Method:

IC411 Self Fan Cooled

Magnet Type:

NdFeB Rare Earth

Frequency:

50Hz / 60Hz

Rated Power:

25KW

Mounting Type:

B5 Flange (B3/B35/V1 Optional)

Packaging Details:

Export plywood case with foam protection

Highlight:

OEM ODM Custom Design

Flange Mounted IE5 Motor

Customized 380V 50HZ PM Motor

Product Description

25KW OEM ODM Custom Permanent Magnetic Motor IE5 Flange Mount 380V 50HZ

Product Overview

The ECER-OM-25 is a 25KW IE5 Permanent Magnetic Motor offered with full OEM ODM customization. Customers can specify shaft dimensions, B5 flange or B3 foot mounting, voltage, frequency and paint finish. Whatever the configuration, this Permanent Magnet Motor maintains IE5 efficiency and high torque density that modern OEM equipment demands.

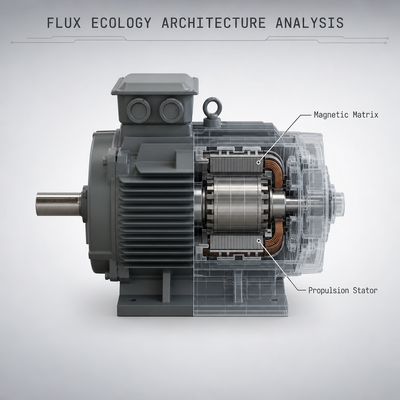

Fig.1 25KW Permanent Magnet Motor Structure Diagram

Key Features

OEM ODM service: custom shaft, flange, terminal box and color
B5 flange mount design suits gearbox and pump building applications
IE5 ultra premium efficiency as standard across custom builds
380V 50HZ three phase supply with other ratings on request
Small batch OEM orders supported with fast prototype delivery

Technical Specifications

Rated Power	25KW
Rated Voltage	380V (Custom 220V-690V)
Frequency	50Hz / 60Hz
Efficiency Class	IE5 Ultra Premium
Rated Speed	1500RPM
Pole Number	4 Poles
Protection Class	IP55
Cooling Method	IC411 Self Fan Cooled
Insulation Class	Class H
Mounting Type	B5 Flange (B3/B35/V1 Optional)
Magnet Type	NdFeB Rare Earth
Noise Level	<=73dB(A)

Applications

Built for OEM partners producing pumps, gearboxes, compressors, agricultural machines and industrial equipment that integrate an IE5 Permanent Magnetic Motor as a core component.

Fig.2 25KW Permanent Magnetic Motor Industrial Application

Quality Assurance

OEM batches are produced under ISO9001 control with material certificates and full test reports. CE certification and customized nameplates are available for every Permanent Magnet Motor order.

Model ECER-OM-25 is available for worldwide export. Send us your specification for a custom quotation and delivery schedule.
