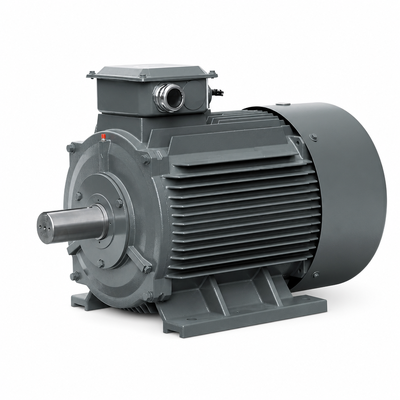

11KW VFD Compatible Permanent Magnet Motor with IE5 Ultra Premium Efficiency for Pump and Fan Applications

Name: 11KW VFD Compatible Permanent Magnet Motor with IE5 Ultra Premium Efficiency for Pump and Fan Applications
Brand: QINGDAO ENNENG MOTOR CO.,LTD.
SKU: ECER-VF-11
Price: 1,450.00 USD
Availability: InStock

Brand Name:	ECER
Model Number:	ECER-VF-11
MOQ:	1 Piece
Price:	USD 1000-1900 / Piece
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO 9001

Efficiency Class:

IE5 Ultra Premium

Rated Voltage:

380V

Speed Range:

100-3000RPM

Insulation Class:

Class H

Protection Class:

IP55

Noise Level:

<=70dB(A)

Pole Number:

4 Poles

Cooling Method:

IC411 Self Fan Cooled

Magnet Type:

NdFeB Rare Earth

Frequency:

50Hz Base, 5-100Hz Range

Rated Power:

11KW

Mounting Type:

B35 (B3/B5 Optional)

Packaging Details:

Export plywood case with foam protection

Highlight:

VFD Variable Frequency Drive

Wide Speed Range Operation

Energy Saving Pump Fan Motor

Product Description

11KW VFD Variable Speed Permanent Magnet Motor Wide Range for Pump Fan Duty

Product Overview

This 11KW Permanent Magnet Motor is optimized for variable frequency drive operation across a wide speed range. Unlike induction motors that lose efficiency away from base speed, this Permanent Magnetic Motor maintains high efficiency from low speed up to rated speed, making it the preferred choice for flow and pressure control in pump and fan systems.

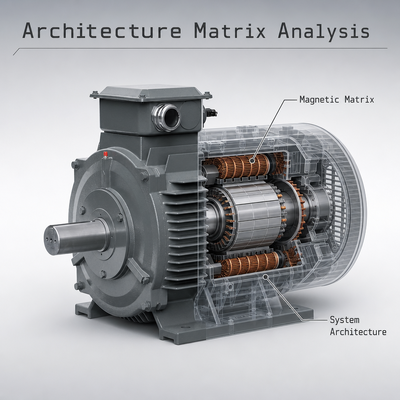

Fig.1 11KW Permanent Magnet Motor Structure Diagram

Key Features

VFD compatible winding and insulation for inverter duty
Wide speed range with stable torque from low speed to rated speed
High efficiency maintained across the whole speed range
Soft start capability removes mechanical shock from the driveline
Typical energy saving of 20-30% on centrifugal loads

Technical Specifications

Rated Power	11KW
Rated Voltage	380V
Frequency	50Hz Base, 5-100Hz Range
Efficiency Class	IE5 Ultra Premium
Speed Range	100-3000RPM
Pole Number	4 Poles
Protection Class	IP55
Cooling Method	IC411 Self Fan Cooled
Insulation Class	Class H
Mounting Type	B35 (B3/B5 Optional)
Magnet Type	NdFeB Rare Earth
Noise Level	<=70dB(A)

Applications

Suited to variable speed pumps, fans, blowers, HVAC units and compressors, where a VFD driven Permanent Magnet Motor matches output to demand and minimizes electricity consumption.

Fig.2 11KW Permanent Magnetic Motor Industrial Application

Quality Assurance

Every inverter duty Permanent Magnetic Motor is surge tested and run in with a VFD before delivery, under ISO9001 quality control, with an 18-month warranty.

Model ECER-VF-11

Available for worldwide export. Contact us for VFD selection support, drawings and pricing details.
