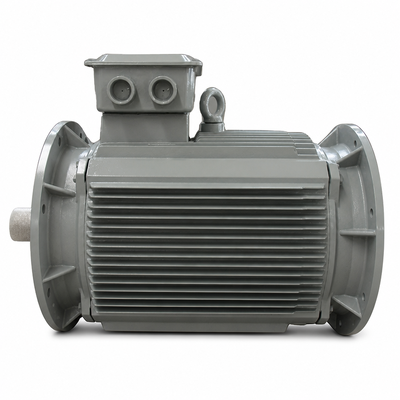

200KW High Starting Torque IE5 Ultra Premium Efficiency Permanent Magnet Motor for Crusher Conveyor Duty

Name: 200KW High Starting Torque IE5 Ultra Premium Efficiency Permanent Magnet Motor for Crusher Conveyor Duty
Brand: QINGDAO ENNENG MOTOR CO.,LTD.
SKU: ECER-HS-200
Price: 15,750.00 USD
Availability: InStock

Brand Name:	ECER
Model Number:	ECER-HS-200
MOQ:	1 Piece
Price:	USD 10500-21000 / Piece
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO 9001

Cooling Method:

IC411 Forced Fan Cooled

Overload Capacity:

150% For 60 Seconds

Frequency:

50Hz

Rated Voltage:

380V / 660V

Rated Speed:

1500RPM

Insulation Class:

Class H

Protection Class:

IP55

Magnet Type:

NdFeB Rare Earth

Pole Number:

4 Poles

Rated Power:

200KW

Mounting Type:

B3 Foot Mounted

Efficiency Class:

IE5 Ultra Premium

Packaging Details:

Export plywood case with foam protection

Highlight:

High Starting Torque Design

Crusher Heavy Duty Drive

High Overload Capacity Motor

Product Description

200KW High Starting Torque Permanent Magnetic Motor for Crusher Conveyor Duty

Product Overview

This 200KW Permanent Magnet Motor is engineered for crushing and conveying applications requiring exceptional starting torque and robust overload capacity. The motor delivers powerful breakaway torque to reliably start loaded crushers and belts, while its IE5 efficiency rating ensures low energy consumption during continuous operation.

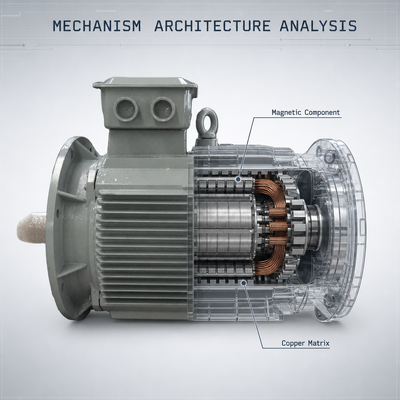

Fig.1 200KW Permanent Magnet Motor Structure Diagram

Key Features

High starting torque for reliable startup of loaded crushers and conveyors
150% overload capacity for 60 seconds to handle surge loads
Rugged cast iron frame for heavy industrial applications
IE5 efficiency reduces operating costs in continuous service
Low temperature rise extends bearing and insulation lifespan

Technical Specifications

Rated Power	200KW
Rated Voltage	380V / 660V
Frequency	50Hz
Efficiency Class	IE5 Ultra Premium
Rated Speed	1500RPM
Pole Number	4 Poles
Protection Class	IP55
Cooling Method	IC411 Forced Fan Cooled
Insulation Class	Class H
Mounting Type	B3 Foot Mounted
Overload Capacity	150% for 60 Seconds
Magnet Type	NdFeB Rare Earth

Applications

Designed for jaw crushers, impact crushers, belt conveyors, feeders, and mills that require high starting torque permanent magnet motors capable of handling heavy breakaway loads.

Fig.2 200KW Permanent Magnetic Motor Industrial Application

Quality Assurance

Every high torque permanent magnetic motor undergoes comprehensive full load and overload testing with test reports provided. Manufactured under ISO9001 quality management system with an 18-month warranty.

Model ECER-HS-200

Available for worldwide export. Contact us for installation support, spare parts, and volume pricing directly from our factory.
