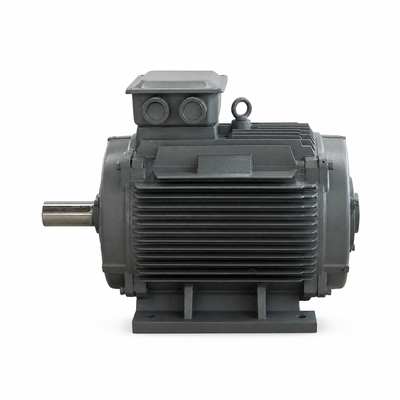

12kW 400V Three Phase Direct Drive Gearless Permanent Magnet Generator for Wind Turbine

Brand Name:	ENNENG
Model Number:	EPMG-12BL
MOQ:	1 Set
Price:	USD 900-1800 / set
Payment Terms:	T/T,L/C
Supply Ability:	3000 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rated Power:

12kW

Frequency:

50Hz / 60Hz

Protection Grade:

IP54

Poles:

Winding Material:

100% Copper

Rated Speed:

200rpm

Efficiency:

>=90%

Cooling Method:

Air Cooled

Rated Voltage:

400V AC

Insulation Class:

Class H

Phase:

Three Phase

Rotor Type:

NdFeB Permanent Magnet

Packaging Details:

Steel frame + waterproof plywood case, seaworthy export packing with lifting lugs

Highlight:

12kW Brushless Permanent Magnet Generator

400V Three Phase PMSG Wind

Maintenance Free Direct Drive Alternator

Product Description

12kW Brushless Permanent Magnet Generator 400V Three Phase for Wind Turbine

This 12kW brushless permanent magnet generator is a three phase PMSG designed for small wind turbine systems. The gearless rotor runs at low speed without carbon brushes, which removes brush wear and excitation loss, making the unit almost maintenance free for residential and farm wind power projects.

Key Features

Brushless excitation free structure, no carbon brush replacement during service life
Direct drive gearless design suitable for low speed wind rotors
NdFeB permanent magnet rotor keeps high torque density and stable output
Three phase 400V AC output with Class H insulation and 100% copper winding
IP54 protection for outdoor installation, CE certified

Technical Parameters

Name	12kW Brushless PM Wind Generator
Rated Power	12kW
Rated Voltage	400V AC
Phase	Three Phase
Frequency	50Hz / 60Hz
Rated Speed	200rpm
Poles	30
Efficiency	>=90%
Protection Grade	IP54
Insulation Class	Class H
Cooling Method	Air Cooled
Winding Material	100% Copper

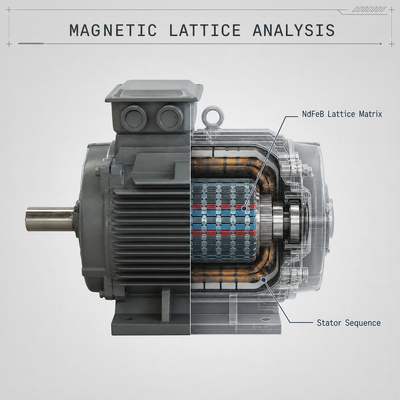

Structure Diagram

Structure diagram of 12kW 400V Three Phase Direct Drive Gearl

Applications

Suitable for 10-15kW small wind turbines
Off grid wind solar hybrid systems
Micro grid demonstration projects

Application

Application of 12kW 400V Three Phase Direct Drive Gearl

Customization Options

Custom rated voltage 220V, 380V, 480V and 60Hz version available on request.

Quality and Service

Every unit is load tested before shipment and supplied with test certificate, wiring diagram and installation manual. CE certification and OEM service are available.

Please contact our engineers with your turbine or genset parameters to confirm the matching permanent magnet generator solution.
