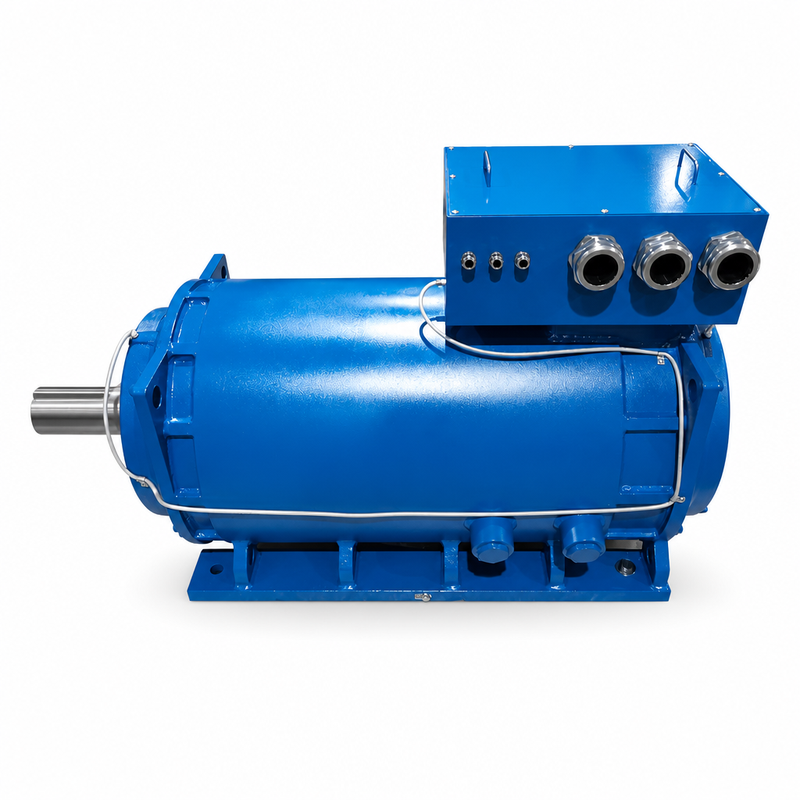

35kW Gearless Permanent Magnet Generator 150rpm 400V for Hydro Turbine Applications

Brand Name:	ENNENG
Model Number:	EPMG-35ML
MOQ:	1 Set
Price:	USD 2500-4500 / set
Payment Terms:	T/T,L/C
Supply Ability:	1500 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rated Power:

35kW

Rated Voltage:

400V AC

Phase:

Three Phase

Frequency:

50Hz / 60Hz

Rated Speed:

150rpm

Poles:

Efficiency:

>=92%

Protection Grade:

IP54

Insulation Class:

Class H

Cooling Method:

Air Cooled

Winding Material:

100% Copper

Load Range:

20%-110%

Packaging Details:

Steel frame + waterproof plywood case, seaworthy export packing with lifting lugs

Highlight:

35kW Gearless Hydro PMSG

150rpm Low Speed Multipole Design

Gearbox Free Permanent Magnetic Generator

Product Description

35kW Gearless Permanent Magnetic Generator 150rpm 400V for Hydro Turbine

This 35kW gearless permanent magnetic generator is engineered for low head hydro turbine stations where the turbine shaft speed is only 150rpm. Removing the speed increasing gearbox eliminates lubrication maintenance and mechanical loss, while the multipole rotor keeps generator efficiency high even at such low speed.

Key Features

True gearbox free operation, no gear oil, no gear noise and no gearbox overhaul cost
40 pole low speed rotor matched to 150rpm water turbine shaft
Permanent magnetic excitation avoids AVR and excitation current loss
Stable voltage output across 20%-110% rated load range
Class H insulation with 100% copper winding for long service life

Technical Parameters

Name	35kW Gearless Hydro PMSG
Rated Power	35kW
Rated Voltage	400V AC
Phase	Three Phase
Frequency	50Hz / 60Hz
Rated Speed	150rpm
Poles	40
Efficiency	>=92%
Protection Grade	IP54
Insulation Class	Class H
Cooling Method	Air Cooled
Winding Material	100% Copper

Structure Diagram

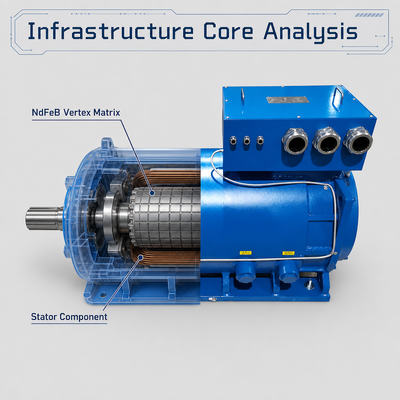

Structure diagram of 35kW Gearless Permanent Magnet Generator

Applications

Applied in run of river hydro plants, irrigation canal power stations and pico-micro hydro projects of 30-40kW class
Also available as generator-motor set for pumped storage test benches

Quality and Service

Application

Application of 35kW Gearless Permanent Magnet Generator

Every unit is load tested before shipment and supplied with test certificate, wiring diagram and installation manual. CE certification and OEM service are available. Please contact our engineers with your turbine or genset parameters to confirm the matching permanent magnet generator solution.
