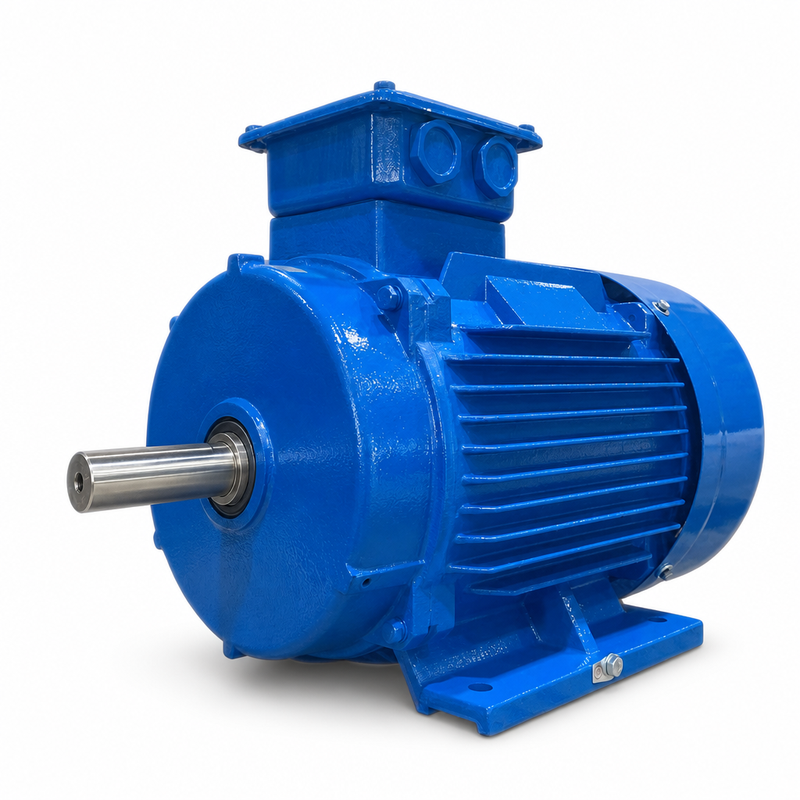

80kW 690V Variable Speed Permanent Magnet Generator for Wind Turbine PMSG

Brand Name:	ENNENG
Model Number:	EPMG-80VS
MOQ:	1 Set
Price:	USD 5500-9500 / set
Payment Terms:	T/T,L/C
Supply Ability:	800 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rated Voltage:

690V AC

Rated Power:

80kW

Frequency:

Converter To 50/60Hz

Efficiency:

>=93%

Speed Range:

30-150rpm

Cooling Method:

Forced Air Cooled

Rated Speed:

150rpm

Poles:

Insulation Class:

Class H

Protection Grade:

IP54

Phase:

Three Phase

Voltage Frequency:

Linear Voltage Frequency Characteristic

Packaging Details:

Steel frame + waterproof plywood case, seaworthy export packing with lifting lugs

Highlight:

80kW Variable Speed Wind PMSG

690V Wide Speed Range Alternator

VFD Compatible Permanent Magnet Generator

Product Description

80kW Variable Speed Permanent Magnet Generator 690V for Wind Turbine PMSG

This 80kW variable speed permanent magnet generator matches the torque speed curve of modern wind turbines through a full power converter. The wide speed range from 30rpm to 150rpm lets the turbine harvest energy from cut in breeze to rated wind, while the 690V three phase PMSG winding keeps transmission loss low on medium length tower cables.

Key Features

Wide speed range 30-150rpm with linear voltage frequency characteristic for MPPT control
690V output reduces cable current and copper loss in tower and trench wiring
SKF bearings and sealed terminal box designed for 20 year wind farm service
Dustproof IP54 enclosure with forced air cooling under full load
Compatible with common wind converter brands via standard terminal layout

Technical Parameters

Name	80kW Variable Speed Wind PMSG
Rated Power	80kW
Rated Voltage	690V AC
Phase	Three Phase
Frequency	Converter to 50/60Hz
Rated Speed	150rpm
Speed Range	30-150rpm
Poles	48
Efficiency	>=93%
Protection Grade	IP54
Insulation Class	Class H
Cooling Method	Forced Air Cooled

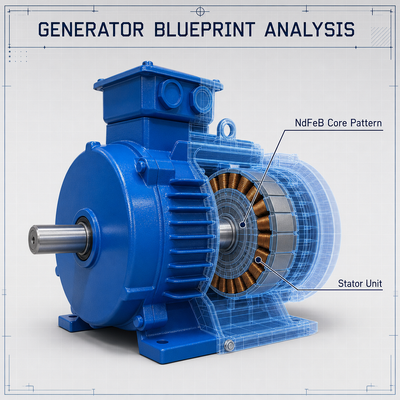

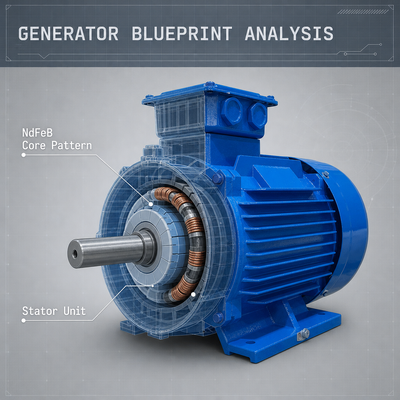

Structure Diagram

Structure diagram of 80kW 690V Variable Speed Permanent Magne

Applications

Designed for 80-100kW horizontal axis wind turbines, distributed wind farms and wind diesel hybrid stations. System integration support including converter selection is available.

Application

Application of 80kW 690V Variable Speed Permanent Magne

Quality and Service

Every unit is load tested before shipment and supplied with test certificate, wiring diagram and installation manual. CE certification and OEM service are available. Please contact our engineers with your turbine or genset parameters to confirm the matching permanent magnet generator solution.
