140kW Low Noise 400V Permanent Magnet Generator for Genset PMSG

Brand Name:	ENNENG
Model Number:	EPMG-140QN
MOQ:	1 Set
Price:	USD 9000-15000 / set
Payment Terms:	T/T,L/C
Supply Ability:	600 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rated Power:

140kW

Frequency:

50Hz / 60Hz

Noise Level:

<75dB(A)

Poles:

Cooling Method:

Air Cooled

Rated Speed:

1500rpm / 1800rpm

Efficiency:

>=94%

Insulation Class:

Class H

Protection Grade:

IP23

Rated Voltage:

400V AC

Phase:

Three Phase

Overload Capability:

High

Packaging Details:

Steel frame + waterproof plywood case, seaworthy export packing with lifting lugs

Highlight:

140kW Low Noise PMG Alternator

400V 1500rpm Standby Power Generator

Quiet Genset Permanent Magnet Alternator

Product Description

140kW Low Noise Permanent Magnet Generator 400V 1500rpm for Genset PMSG

This 140kW low noise permanent magnet generator is a four pole PMG alternator running at 1500rpm for 50Hz standby and prime power gensets. Without excitation winding and slip rings the alternator runs quieter and cooler, which helps the complete genset meet strict residential and hospital noise limits.

Key Features

Noise level below 75dB(A) at 1m, suitable for noise sensitive sites
No excitation system, AVR or slip ring, reducing failure points of the set
Fast voltage response and high overload capability for motor starting loads
Balanced three phase 400V output with low harmonic distortion
Compact 4 pole frame easy to couple with standard diesel engine bell housing

Technical Parameters

Name	140kW Low Noise Genset PMG
Rated Power	140kW
Rated Voltage	400V AC
Phase	Three Phase
Frequency	50Hz / 60Hz
Rated Speed	1500rpm / 1800rpm
Poles	4
Efficiency	>=94%
Noise Level	<75dB(A)
Protection Grade	IP23
Insulation Class	Class H
Cooling Method	Air Cooled

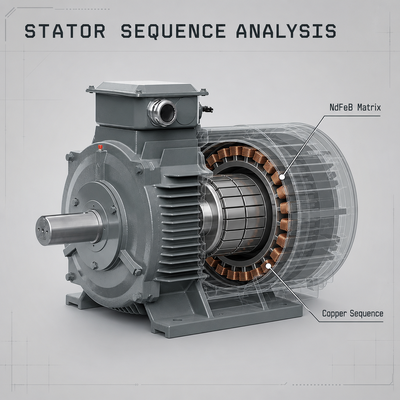

Structure Diagram

Structure diagram of 140kW Low Noise 400V Permanent Magnet Ge

Applications

140kVA class standby gensets
Telecom base station power
Hospital backup systems
Prime power rental fleets

60Hz 1800rpm version is available.

Application

Application of 140kW Low Noise 400V Permanent Magnet Ge

Quality and Service

Every unit is load tested before shipment and supplied with test certificate, wiring diagram and installation manual. CE certification and OEM service are available. Please contact our engineers with your turbine or genset parameters to confirm the matching permanent magnet generator solution.
