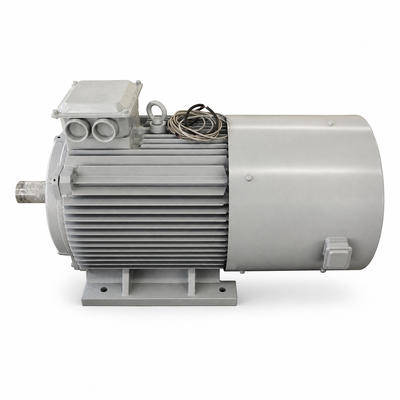

25kW 400V 300rpm Permanent Magnet Generator for Grid Tie and Off Grid Applications

Brand Name:	ENNENG
Model Number:	EPMG-25GO
MOQ:	1 Set
Price:	USD 1800-3200 / set
Payment Terms:	T/T,L/C
Supply Ability:	2500 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Efficiency:

>=92%

Insulation Class:

Class H

Rated Voltage:

400V AC

Rated Power:

25kW

Frequency:

50Hz / 60Hz

Voltage Regulation:

<±3%

Poles:

Cooling Method:

Air Cooled

Rated Speed:

300rpm

Phase:

Three Phase

Protection Grade:

IP54

Rotor Poles:

Packaging Details:

Steel frame + waterproof plywood case, seaworthy export packing with lifting lugs

Highlight:

25kW Grid Tie Off Grid PMSG

Dual Mode Hybrid Power Generator

400V Three Phase Stable Voltage Output

Product Description

25kW Grid Tie Off Grid Permanent Magnet Generator 400V 300rpm Three Phase

This 25kW grid tie off grid permanent magnet generator works in both on grid and island mode through a dual mode controller, making it a flexible core for village hybrid power systems combining wind, hydro and solar. The generator itself delivers stable voltage output so the controller can focus on power dispatch rather than excitation correction.

Key Features

Dual mode operation supports grid tie feed in and off grid island supply
Stable voltage output within ±3% keeps sensitive loads safe in island mode
20 pole rotor at 300rpm matches small wind and low head hydro turbines
Three phase 400V design with neutral point available for single phase loads
CE certified with complete test report delivered per unit

Technical Parameters

Name	25kW Dual Mode Hybrid PMSG
Rated Power	25kW
Rated Voltage	400V AC
Phase	Three Phase
Frequency	50Hz / 60Hz
Rated Speed	300rpm
Poles	20
Efficiency	>=92%
Voltage Regulation	<±3%
Protection Grade	IP54
Insulation Class	Class H
Cooling Method	Air Cooled

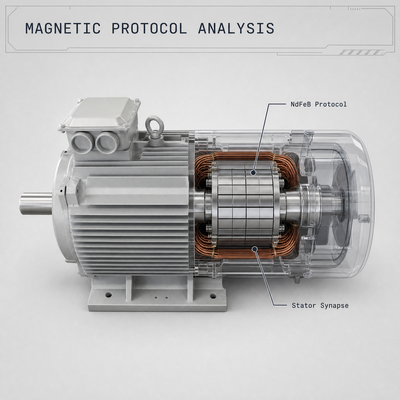

Structure Diagram

Structure diagram

Applications

Used in rural micro grids, farm hybrid systems, telecommunication tower power and island energy projects of 20-30kW class. Controller and dump load can be supplied as a complete package.

Application

Application scene

Quality and Service

Every unit is load tested before shipment and supplied with test certificate, wiring diagram and installation manual. CE certification and OEM service are available. Please contact our engineers with your turbine or genset parameters to confirm the matching permanent magnet generator solution.
