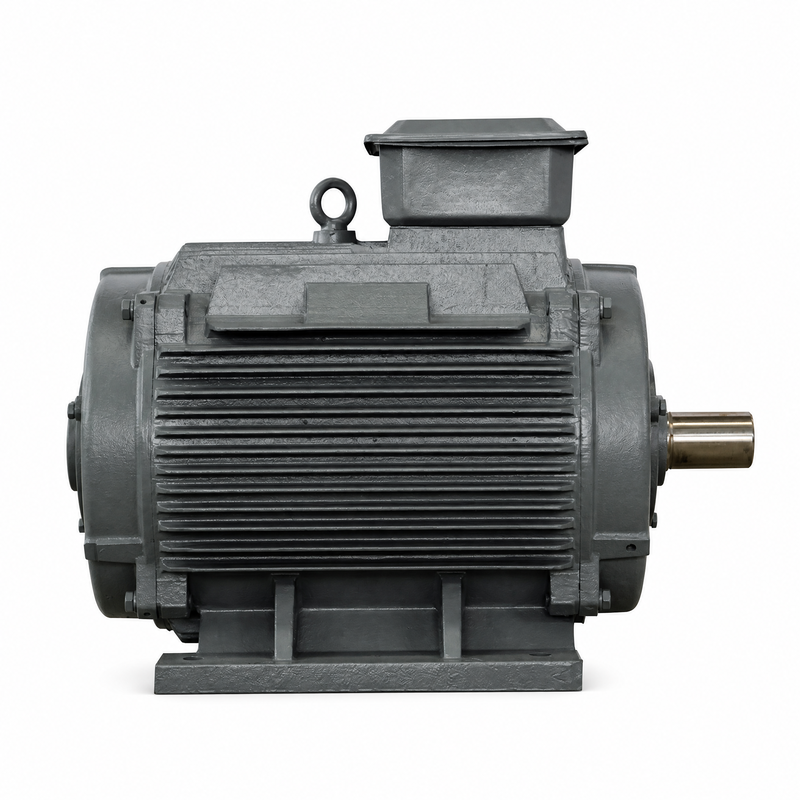

180kW IP67 Waterproof Marine Grade Permanent Magnet Generator for Marine Applications

Brand Name:	ENNENG
Model Number:	EPMG-180MG
MOQ:	1 Set
Price:	USD 13000-22000 / set
Payment Terms:	T/T,L/C
Supply Ability:	300 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rated Power:

180kW

Rated Speed:

750rpm / 900rpm

Efficiency:

>=94%

Cooling Method:

Water Cooled

Frequency:

50Hz / 60Hz

Protection Grade:

IP67

Poles:

Housing Material:

Marine Grade Coated Steel

Rated Voltage:

690V AC

Insulation Class:

Class H

Phase:

Three Phase

Salt Mist Test:

Available On Request

Packaging Details:

Steel frame + waterproof plywood case, seaworthy export packing with lifting lugs

Highlight:

180kW IP67 Marine PMSG

Waterproof Shaft Generator Alternator

Corrosion Resistant Marine Grade Design

Product Description

180kW IP67 Waterproof Permanent Magnet Generator 690V 750rpm Marine Grade

This 180kW IP67 waterproof permanent magnet generator is a marine grade shaft generator designed for ship auxiliary power and offshore platform installations. The fully sealed enclosure protects against sea water spray, humidity, and oil mist, while the brushless permanent magnet rotor eliminates the excitation maintenance required by conventional marine alternators.

Key Features

IP67 fully sealed enclosure rated for wash down and sea spray environments
Marine grade anti-corrosion coating on housing and terminal box
Brushless excitation-free rotor reduces service work in engine rooms
Works as shaft generator driven by main engine PTO or as standalone set
Salt mist test report and classification society documents available upon request

Technical Parameters

Name	180kW Marine Shaft PMSG
Rated Power	180kW
Rated Voltage	690V AC
Phase	Three Phase
Frequency	50Hz / 60Hz
Rated Speed	750rpm / 900rpm
Poles	8
Efficiency	≥94%
Protection Grade	IP67
Insulation Class	Class H
Cooling Method	Water Cooled
Housing Material	Marine Grade Coated Steel

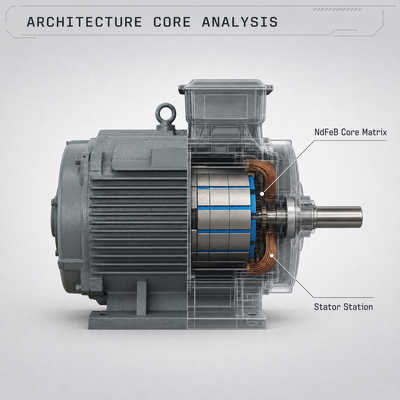

Structure Diagram

Structure diagram of 180kW IP67 Waterproof Marine Grade Perma

Applications

Workboats, fishing vessels, yachts, and offshore platforms for auxiliary power generation
60Hz 900rpm and 1200rpm versions available for the world fleet

Application

Application of 180kW IP67 Waterproof Marine Grade Perma

Quality and Service

Every unit undergoes load testing before shipment and is supplied with test certificate, wiring diagram, and installation manual. CE certification and OEM services are available. Please contact our engineers with your turbine or genset parameters to confirm the matching permanent magnet generator solution.
