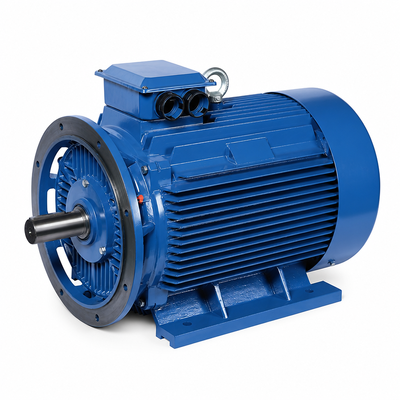

120kW Adjustable Voltage Custom Design Permanent Magnet Generator PMSG for OEM Applications

Brand Name:	ENNENG
Model Number:	EPMG-120CD
MOQ:	1 Set
Price:	USD 9000-15000 / set
Payment Terms:	T/T,L/C
Supply Ability:	400 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rated Power:

120kW

Frequency:

50Hz / 60Hz Custom

Protection Grade:

IP54 / IP55

Poles:

Per Speed Design

Rated Speed:

150-1500rpm

Efficiency:

>=93%

Cooling Method:

Air Or Water Cooled

Rated Voltage:

380V-690V Custom

Insulation Class:

Class H

Phase:

Three Phase

Adjustable Voltage:

380V To 690V

Custom Shaft:

Per Drivetrain Drawing

Packaging Details:

Steel frame + waterproof plywood case, seaworthy export packing with lifting lugs

Highlight:

120kW OEM ODM Custom Generator

Custom Voltage Frequency PMSG Design

Bespoke Permanent Magnetic Generator

Product Description

120kW OEM ODM Custom Permanent Magnetic Generator Adjustable Voltage PMSG

This 120kW OEM ODM custom permanent magnetic generator is our flexible platform for buyers who need a generator matched to a special turbine, engine or operating condition. Voltage, frequency, speed, shaft extension and terminal layout can be adjusted on the same frame platform, and OEM marking and packing follow the customer's brand requirement.

Key Features

Adjustable voltage from 380V to 690V and frequency 50Hz or 60Hz on one frame

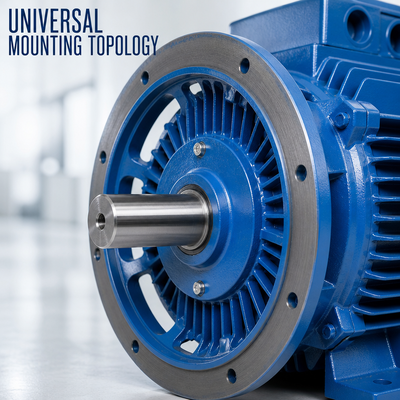

Custom shaft, flange and coupling dimensions per your drivetrain drawing
OEM nameplate, terminal box marking and export packing available
Engineered per project with performance calculation sheet before production
Batch consistency controlled by magnet grading and winding process records

Technical Parameters

Name	120kW Custom PMSG
Rated Power	120kW
Rated Voltage	380V-690V Custom
Phase	Three Phase
Frequency	50Hz / 60Hz Custom
Rated Speed	150-1500rpm
Poles	Per Speed Design
Efficiency	>=93%
Protection Grade	IP54 / IP55
Insulation Class	Class H
Cooling Method	Air or Water Cooled
OEM Service	Drawing Customization / Logo / Packing

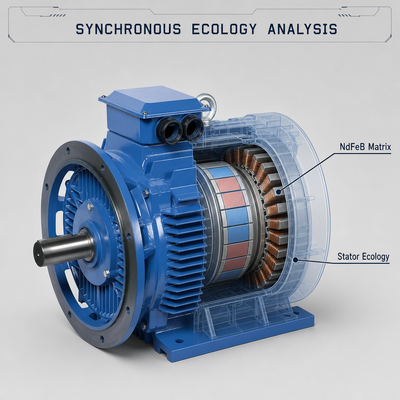

Structure Diagram

Structure diagram of 120kW Adjustable Voltage Custom Design P

Applications

For genset packagers, wind and hydro system integrators and machine builders who source private brand permanent magnet generators. Minimum custom order quantity is one unit for prototype approval.

Application

Application of 120kW Adjustable Voltage Custom Design P

Quality and Service

Every unit is load tested before shipment and supplied with test certificate, wiring diagram and installation manual. CE certification and OEM service are available. Please contact our engineers with your turbine or genset parameters to confirm the matching permanent magnet generator solution.
