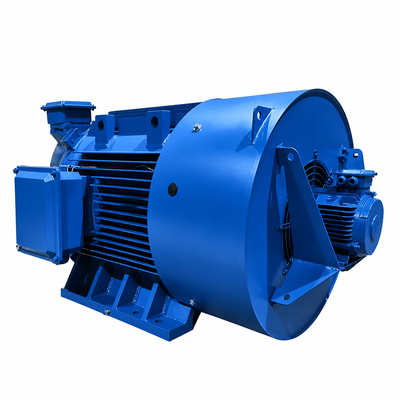

150KW Gearless Direct Drive Permanent Magnet Generator with High Torque for Low Speed Applications

Brand Name:	ECER PMM
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	500 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Rated Voltage:

400V

Magnet Material:

NdFeB Rare Earth

Protection Grade:

IP55

Drive Type:

Gearless Direct Drive

Rated Speed:

500 RPM

Insulation Class:

Class H

Phase:

Three Phase

Cooling Method:

IC411 Air Cooled

Ambient Temperature:

-20C To +50C

Rated Power:

150KW

Mounting Type:

Flange Mounted

Rated Torque:

2865 N.m

Packaging Details:

Export wooden case packaging

Highlight:

Gearless Direct Drive Generator

High Torque PM Generator

500RPM Low Speed Generator

Product Description

Gearless Direct Drive 500RPM Permanent Magnet Generator 150KW High Torque

Product Overview

The gearless direct drive permanent magnet generator couples directly to the prime mover and delivers high torque at low speed without a gearbox. Removing the gearbox reduces noise, oil maintenance and failure points, which improves availability for low speed power systems.

Key Features

Gearless direct drive design removes the gearbox and its oil maintenance
High torque output at low speed for direct coupled prime movers
Fewer wear parts and lower maintenance cost
Compact axial length suited to wind and hydro installations
Smooth, low vibration running

Working Principle

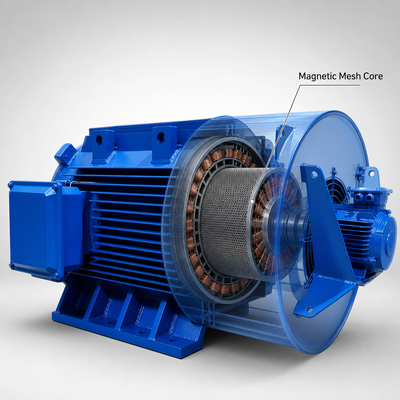

Permanent Magnet Generator Working Principle Diagram

Technical Specifications

Parameter	Value
Rated Power	150KW
Rated Voltage	400V AC
Rated Speed	500 RPM
Rated Torque	2865 N.m
Magnet Material	NdFeB Rare Earth
Drive Type	Gearless Direct Drive
Insulation Class	Class H
Cooling	IC411 Air Cooled
Protection Grade	IP55
Mounting	Flange Mounted

Applications

Direct drive wind turbines
Low head hydro turbines
Tidal and marine power
Low speed industrial drive lines

Permanent Magnet Generator Machine Application

Ordering Information

The 150KW gearless generator can be configured for your prime mover torque and speed. Advise your rated torque and mounting, then contact us for a quotation.
