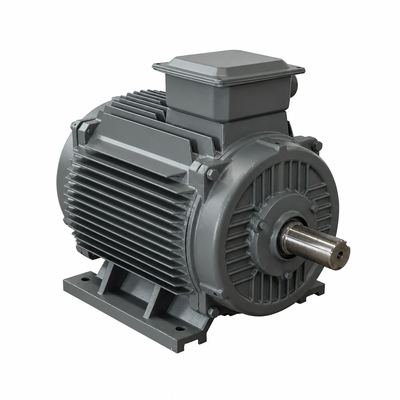

200KW IE5 Efficiency IC71W Water Cooled Permanent Magnet Generator for Compressor Use

Brand Name:	ECER PMM
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	500 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Rated Voltage:

400V

Cooling Method:

IC71W Water Cooled

Mounting Type:

IMB3

Insulation Class:

Class H

Phase:

Three Phase

Magnet Material:

NdFeB Rare Earth

Rated Speed:

1500 RPM

Protection Grade:

IP55

Ambient Temperature:

-15C To +45C

Rated Power:

200KW

Coolant Flow:

15 L/min

Efficiency Class:

IE5

Packaging Details:

Export wooden case packaging

Highlight:

Water Cooled PM Generator

IE5 High Power Generator

200KW Compressor Generator

Product Description

Water Cooled 200KW IE5 Permanent Magnet Generator IC71W for Compressor Use

Product Overview

The 200KW water cooled permanent magnet generator uses an IC71W water jacket to maintain stable winding temperatures during continuous high-load operation. This generator is specifically designed for compressor drives and other demanding power generation applications where air cooling proves insufficient.

Key Features

IC71W water cooling maintains stable temperature under continuous load conditions
IE5 efficiency class with minimal electrical losses
Ideal for high-power compressor and industrial drive systems
Compact frame design enabled by efficient water cooling
Low noise operation compared to air-cooled high-power units

Working Principle

Permanent Magnet Generator Working Principle Diagram

Technical Specifications

Parameter	Value
Rated Power	200KW
Rated Voltage	400V AC
Rated Speed	1500 RPM
Efficiency Class	IE5
Cooling	IC71W Water Cooled
Magnet Material	NdFeB Rare Earth
Insulation Class	Class H
Protection Grade	IP55
Coolant Flow	15 L/min
Mounting	IMB3

Applications

Compressor drive power generation, extruder and process industry power recovery, and continuous industrial power supply systems.

Permanent Magnet Generator Machine Application

Ordering Information

The 200KW water cooled generator can be customized to match your specific coolant supply requirements and duty cycle parameters. Please share your cooling specifications and load conditions to receive a detailed quotation and comprehensive datasheet.
