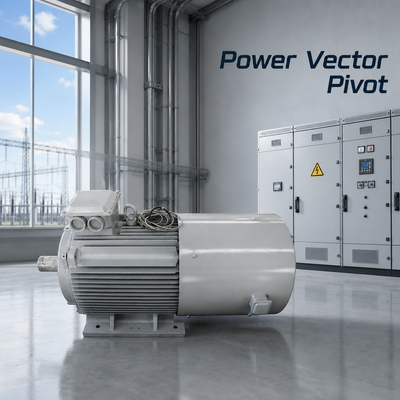

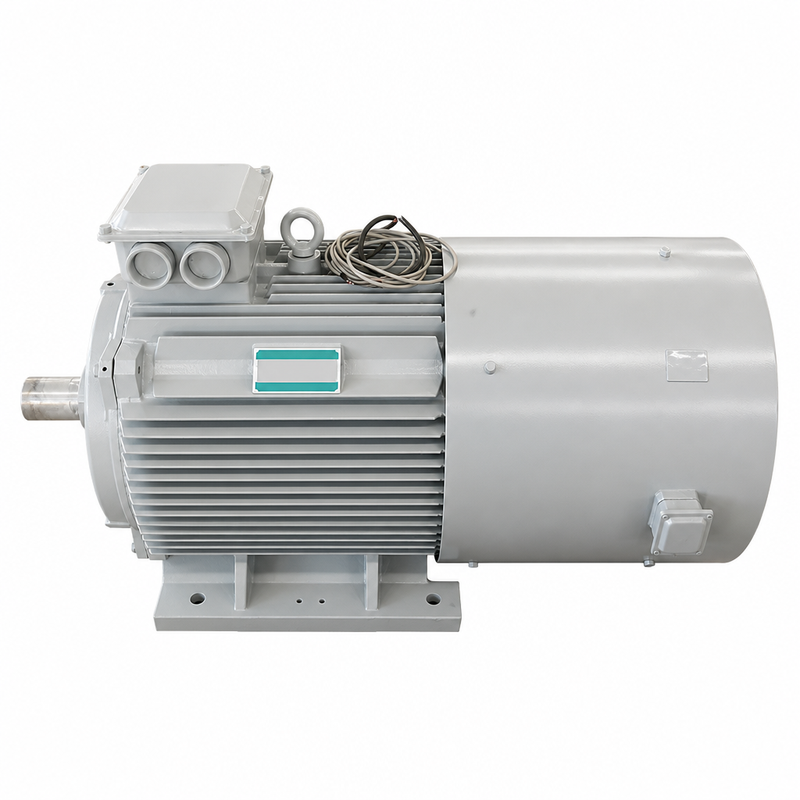

30KW Permanent Magnet Generator with IE5 Efficiency and NdFeB Rare Earth Magnet

Brand Name:	ECER PMM
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	500 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Rotor Type:

Surface Mounted

Phase:

Three Phase

Rated Voltage:

400V

Magnet Material:

Sintered NdFeB

Protection Grade:

IP55

Magnet Grade:

N38SH

Insulation Class:

Class H

Mounting Type:

IMB3

Cooling Method:

IC411 Air Cooled

Rated Power:

30KW

Rated Speed:

1000 RPM

Efficiency Class:

IE5

Packaging Details:

Export wooden case packaging

Highlight:

Neodymium PM Generator

Rare Earth Rotor Generator

30KW NdFeB Generator

Product Description

Neodymium Rare Earth 30KW Permanent Magnetic Generator NDFEB Rotor IE5

Product Overview

The 30KW permanent magnetic generator utilizes a sintered neodymium NdFeB rare earth rotor. High-grade magnets provide strong magnetic strength for the frame size, supporting IE5 efficiency and enabling a compact, lightweight generator for its rated power.

Key Features

Sintered NdFeB rare earth magnets for high magnetic strength
IE5 efficiency with a compact, lightweight frame
Surface mounted rotor for stable output
High grade N38SH magnets with good temperature stability
Low cogging torque for smooth running

Working Principle

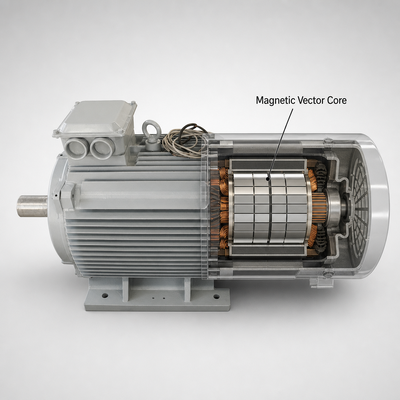

Permanent Magnet Generator Working Principle Diagram

Technical Specifications

Parameter	Value
Rated Power	30KW
Rated Voltage	400V AC
Rated Speed	1000 RPM
Efficiency Class	IE5
Magnet Material	Sintered NdFeB
Magnet Grade	N38SH
Rotor Type	Surface Mounted
Insulation Class	Class H

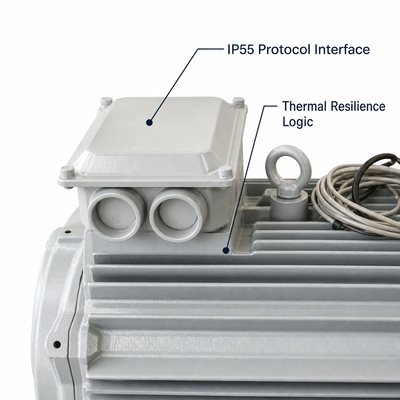

Protection Grade	IP55
Mounting	IMB3

Applications

Small wind and hydro power, portable power generation, and backup power systems that require high power in a compact frame.

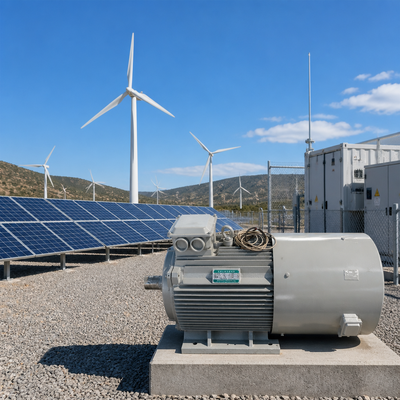

Permanent Magnet Generator Machine Application

Ordering Information

The 30KW neodymium generator can be built to your voltage, speed and frame requirements. Share your specification, then request a quotation and magnet datasheet.
