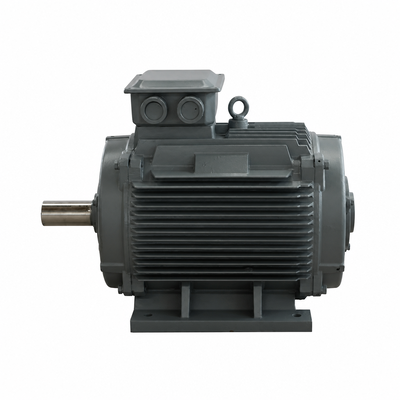

15KW Permanent Magnet Generator with 17 Bit Absolute Encoder and IE4 Efficiency for Precision Speed Control

Brand Name:	ECER PMM
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	500 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Insulation Class:

Class F

Phase:

Three Phase

Rated Voltage:

380V

Efficiency Class:

IE4

Cooling Method:

IC411 Air Cooled

Magnet Material:

NdFeB Rare Earth

Rated Speed:

1500 RPM

Protection Grade:

IP54

Ambient Temperature:

-10C To +45C

Rated Power:

15KW

Mounting Type:

IMB5 Flange

Encoder:

17 Bit Absolute

Packaging Details:

Export wooden case packaging

Highlight:

Encoder PM Generator

Precision Speed Generator

15KW Feedback Generator

Product Description

Encoder Feedback 15KW Permanent Magnet Generator with Precision Speed Control

Product Overview

This 15KW permanent magnet generator features a 17-bit absolute encoder, enabling the drive to close the speed and position loop. Ideal for power generation and test bench applications requiring precise speed regulation and stable output.

Key Features

17-bit absolute encoder for precise speed and position feedback
Closed loop control with matched drive compatibility
Stable output performance under varying load conditions
IE4 efficiency rating with rare earth rotor construction
Compact flange mounting for easy system integration

Working Principle

Permanent Magnet Generator Working Principle Diagram

Technical Specifications

Parameter	Value
Rated Power	15KW
Rated Voltage	380V AC
Rated Speed	1500 RPM
Encoder	17 Bit Absolute
Efficiency Class	IE4
Magnet Material	NdFeB Rare Earth
Insulation Class	Class F
Protection Grade	IP54
Cooling	IC411 Air Cooled
Mounting	IMB5 Flange

Applications

Closed loop power generation, test benches, dynamometer systems, and precision drive applications.

Permanent Magnet Generator Machine Application

Ordering Information

The 15KW encoder generator can be matched to your specific drive and feedback protocol requirements. Please advise your control specifications, then contact us for a quotation and encoder datasheet.
