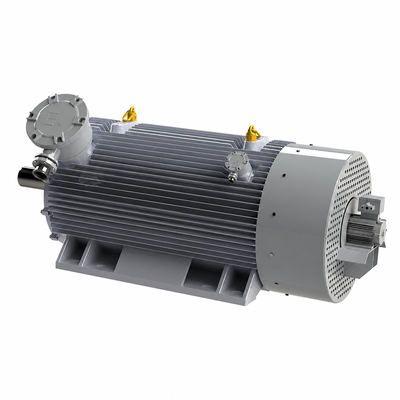

75KW B5 Flange Mounted Permanent Magnet Generator with IE4 Efficiency for Industrial Drive Lines

Brand Name:	ECER PMM
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	500 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Magnet Material:

NdFeB Rare Earth

Phase:

Three Phase

Rated Voltage:

400V

Mounting Type:

IMB5 B5 Flange

Protection Grade:

IP55

Flange Size:

FF350

Rated Speed:

1000 RPM

Insulation Class:

Class F

Ambient Temperature:

-15C To +45C

Rated Power:

75KW

Cooling Method:

IC411 Air Cooled

Efficiency Class:

IE4

Packaging Details:

Export wooden case packaging

Highlight:

Flange Mounted Generator

75KW Industrial Generator

B5 PM Generator

Product Description

B5 Flange Mounted 75KW Permanent Magnet Generator for Industrial Drive Line

Product Overview

This 75KW flange mounted permanent magnet generator uses a standard B5 flange interface so it can be aligned and fitted to existing drive lines with minimal changes. The flange mount keeps the rotor coaxial with the driven equipment for low vibration.

Key Features

Standard B5 flange interface for easy alignment and retrofit
Stable co-axial mounting with low vibration
IE4 efficiency and rare earth rotor
Rugged industrial frame for continuous duty
Configurable voltage and speed to match the line

Working Principle

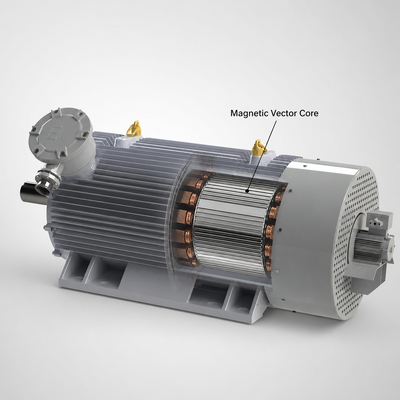

Permanent Magnet Generator Working Principle Diagram

Technical Specifications

Parameter	Value
Rated Power	75KW
Rated Voltage	400V AC
Rated Speed	1000 RPM
Efficiency Class	IE4
Mounting Type	IMB5 B5 Flange
Flange Size	FF350
Magnet Material	NdFeB Rare Earth
Insulation Class	Class F
Protection Grade	IP55
Cooling	IC411 Air Cooled

Applications

Industrial drive lines, pump and fan test rigs, retrofit power generation and general industrial power systems.

Permanent Magnet Generator Machine Application

Ordering Information

The 75KW flange generator can be supplied with a flange size to suit your drive line. Confirm your flange standard and speed, then request a quotation.
