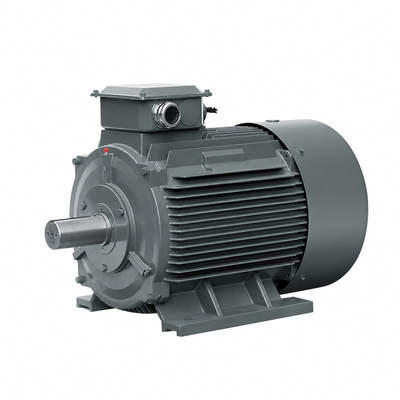

10KW Wide Temperature Range -40C to +60C Permanent Magnet Generator with Class H Insulation

Brand Name:	ECER PMM
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T,L/C
Supply Ability:	500 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Insulation Class:

Class H

Phase:

Three Phase

Rated Voltage:

400V

Ambient Temperature:

-40C To +60C

Protection Grade:

IP55

Magnet Grade:

N42SH

Rated Speed:

1000 RPM

Cooling Method:

IC411 Air Cooled

Mounting Type:

IMB3

Rated Power:

10KW

Heater:

Anti Condensation Heater

Efficiency Class:

IE4

Packaging Details:

Export wooden case packaging

Highlight:

Wide Temperature Generator

High Ambient PM Generator

10KW Industrial Generator

Product Description

Wide Temperature 10KW Permanent Magnet Generator 40C to 60C Range Industrial

Product Overview

This 10KW permanent magnet generator is rated for a wide ambient range from 40°C below zero to 60°C. High temperature grade magnets, class H insulation and an optional anti-condensation heater keep performance stable in cold, hot and high humidity locations.

Key Features

Wide ambient range from 40°C below zero to 60°C
High grade magnets and class H insulation for temperature stability
Optional anti-condensation heater for humid and cold sites
Outdoor rated enclosure for harsh environments
Stable output across the full temperature range

Working Principle

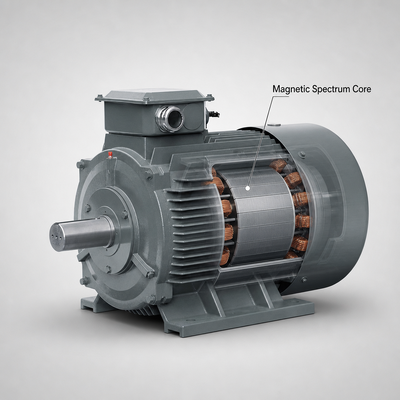

Permanent Magnet Generator Working Principle Diagram

Technical Specifications

Parameter	Value
Rated Power	10KW
Rated Voltage	400V AC
Rated Speed	1000 RPM
Efficiency Class	IE4
Ambient Temperature	-40°C to +60°C
Magnet Grade	N42SH
Insulation Class	Class H
Cooling	IC411 Air Cooled
Protection Grade	IP55
Heater	Anti Condensation Heater

Applications

Outdoor and desert solar wind hybrid systems, cold climate and tropical sites, and remote power generation.

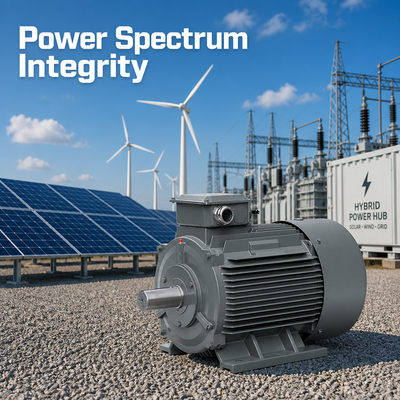

Permanent Magnet Generator Machine Application

Ordering Information

The 10KW wide temperature generator can be configured for your climate and voltage. Tell us your ambient range and site conditions, then contact us for a quotation.
